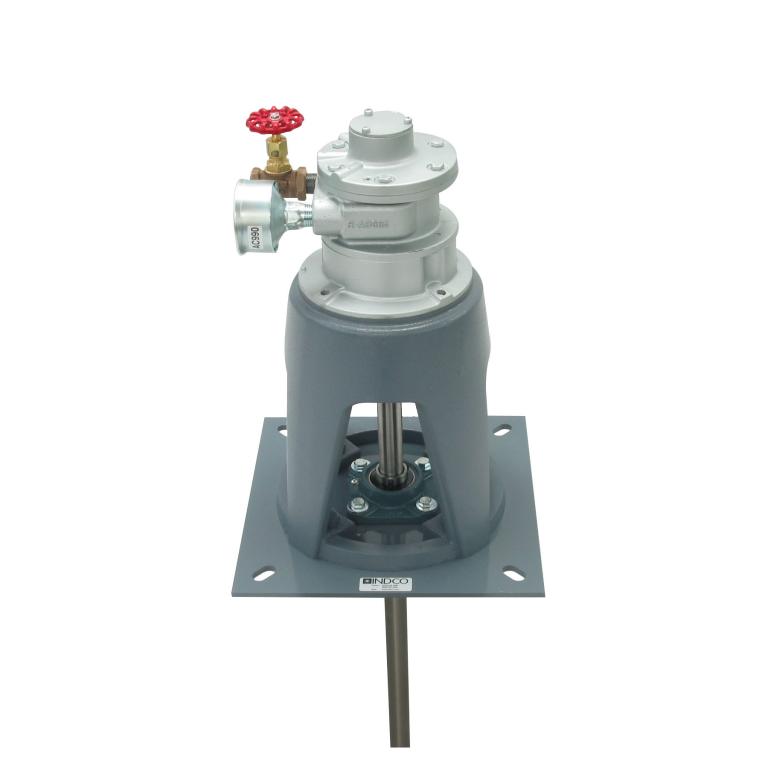

1-1/2 HP Air Direct Drive Plate Mount Mixer
Model Number: TMD-9
Part Number: 21Q2600
INDCO's Top Entry Plate Mount Mixer is designed to mount on a beam or channel over an open or closed tank operated under atmospheric conditions. These heavy duty models can mix various applications in batches up to 2000 gallons. A carrier bearing mounted at the mounting plate offers maximum shaft support and reduced motor wear.
The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. This model operates at 300-3000 RPM. The 60" long shaft attaches to the motor coupler and two 6" 3-blade square pitch impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1-1/2 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 4AM-NRV-50C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 70 CFM |
| Air Inlet Size | 1/4" |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 6" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Adjustable | Riser Angle Available by Quote |
| Construction | Steel |
| Features | 12" x 12" Baseplate |
Shaft
| Exposed Dimensions | 1/2" x 60" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: TMD-9
INDCO's Top Entry Plate Mount Mixer is designed to mount on a beam or channel over an open or closed tank operated under atmospheric conditions. These heavy duty models can mix various applications in batches up to 2000 gallons. A carrier bearing mounted at the mounting plate offers maximum shaft support and reduced motor wear.
The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. This model operates at 300-3000 RPM. The 60" long shaft attaches to the motor coupler and two 6" 3-blade square pitch impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1-1/2 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 4AM-NRV-50C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 70 CFM |
| Air Inlet Size | 1/4" |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 6" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Adjustable | Riser Angle Available by Quote |
| Construction | Steel |
| Features | 12" x 12" Baseplate |
Shaft
| Exposed Dimensions | 1/2" x 60" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
5 Business Days * Orders in quantity or with other items may extend lead times.
