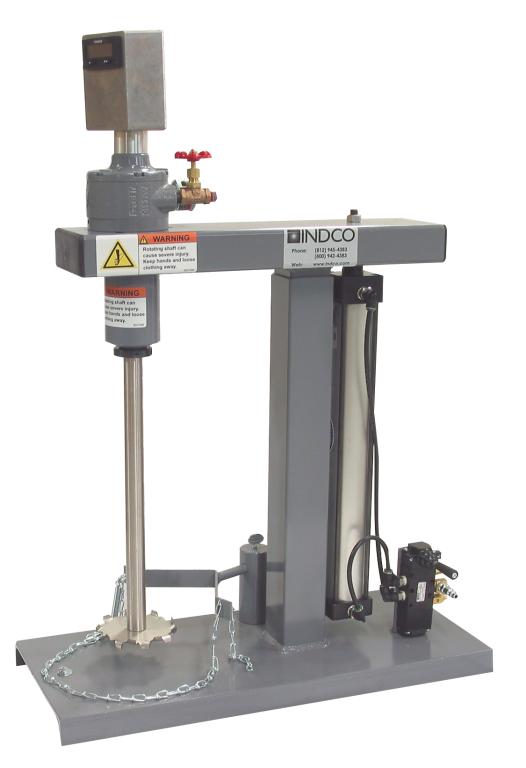

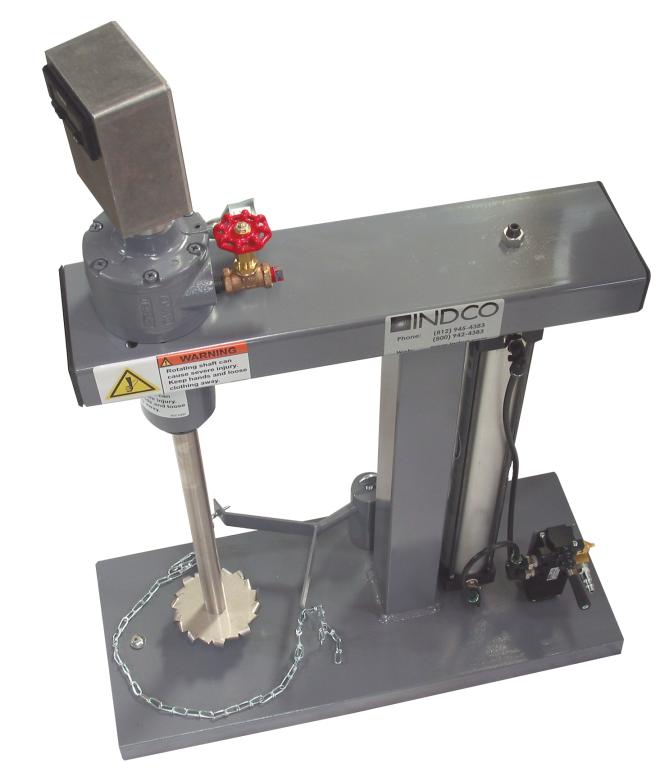

1-1/2 HP Air Disperser with Tachometer and Benchtop Base

1-1/2 HP Air Disperser with Tachometer and Benchtop Base Image
1-1/2 HP Air Disperser with Tachometer and Benchtop Base - image 1
1-1/2 HP Air Disperser with Tachometer and Benchtop Base - image 2

Model Number: HSD15A

Part Number: 21D2055

INDCO's 1-1/2 HP pneumatic bench top disperser with digital tachometer reliably processes up to five gallons.  Raise and lower the unit up to 15" with the easy to use toggle valve and air cylinder.  The cylinder requires 5 CFM at 50 PSI.  Speed is adjustable from 300-3000 RPM and the 1-1/2 HP motor provides maximum agitation when supplied with 100 PSI at 70 CFM.  See our air motor performance guide for operation at lower air flow.  The 1" x 15" shaft is drilled and tapped on the end for bolting on the included 4" diameter design A dispersion blade.  Pre-lubricated heavy-duty ball bearings add stability and minimize shaft vibration.   Securely hold pails with the adjustable chain restraint.  All wetted parts are 300 series stainless steel.  This model features a Gast air motor known for rugged construction and reliability.  Air motors deliver variable speed for maximum flexibility or multiple applications.  They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.

Motor

Impeller

Mount

Shaft

General

Model Number: HSD15A

INDCO's 1-1/2 HP pneumatic bench top disperser with digital tachometer reliably processes up to five gallons.  Raise and lower the unit up to 15" with the easy to use toggle valve and air cylinder.  The cylinder requires 5 CFM at 50 PSI.  Speed is adjustable from 300-3000 RPM and the 1-1/2 HP motor provides maximum agitation when supplied with 100 PSI at 70 CFM.  See our air motor performance guide for operation at lower air flow.  The 1" x 15" shaft is drilled and tapped on the end for bolting on the included 4" diameter design A dispersion blade.  Pre-lubricated heavy-duty ball bearings add stability and minimize shaft vibration.   Securely hold pails with the adjustable chain restraint.  All wetted parts are 300 series stainless steel.  This model features a Gast air motor known for rugged construction and reliability.  Air motors deliver variable speed for maximum flexibility or multiple applications.  They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.

Motor

Impeller

Mount

Shaft

General


$2,739.50
Approx. Lead Time
5 Business Days
* Orders in quantity or with other items may extend lead times.
