3/4 HP Electric Gear Drive Heavy Duty Clamp Mount Mixer

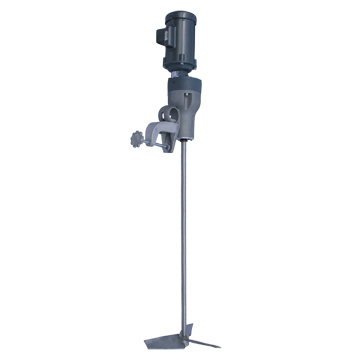

3/4 HP Electric Gear Drive Heavy Duty Clamp Mount Mixer Image

Model Number: GH-075T

Part Number: 21A4035

Our heavy duty clamp mount mixers are our most robust design for mixing in open top containers or with slotted lids.  They feature a substantial cast aluminum clamp assembly and nosecone with a pressed-in bearing for maximum shaft support.  The mass of the clamp and nosecone combined with larger shaft diameters minimize vibration during operation.  The clamp mount has 90° vertical and 360° horizontal adjustments for versatile mixer positioning. The GH series produces high torque necessary for handling large batches of low viscosity materials or small batches of heavy materials.
The electric 3/4 HP direct drive model runs at 350 RPM with single phase 115/230 voltage. This totally-enclosed fan cooled motor is ready to plug into a standard outlet. The 46" long shaft attaches to the motor coupler and one 14" hydrofoil impeller with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.

Motor

Horsepower 3/4
Motor Enclosure Totally Enclosed Fan Cooled
MotorRPM 1750
Motor Type Electric
Baldor Model or Equivalent VL3507
IPTS Model RPQ1-5-56C
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Wired Clockwise
Phase Single
Voltage 115/230
Hertz 60
FL Amps 8.4:4.2
ServiceFactor 1.00
InsulationClass B
Drive Gear Reduced
Gearbox Ratio 5:1
Gearbox RPM 350

Impeller

Quantity 1
Diameter 14"
Style Hydrofoil
Bore 1"
Rotation Left Hand
Material Construction 316 Stainless Steel
Blade Construction Welded
Set Screw 2

Mount

Adjustable 90° vertical and 360° horizontal adjustment
Construction Cast Aluminum
Features Hand Knob

Shaft

Exposed Dimensions 1" x 46"
Construction 316 Stainless Steel

Model Number: GH-075T

Our heavy duty clamp mount mixers are our most robust design for mixing in open top containers or with slotted lids.  They feature a substantial cast aluminum clamp assembly and nosecone with a pressed-in bearing for maximum shaft support.  The mass of the clamp and nosecone combined with larger shaft diameters minimize vibration during operation.  The clamp mount has 90° vertical and 360° horizontal adjustments for versatile mixer positioning. The GH series produces high torque necessary for handling large batches of low viscosity materials or small batches of heavy materials.
The electric 3/4 HP direct drive model runs at 350 RPM with single phase 115/230 voltage. This totally-enclosed fan cooled motor is ready to plug into a standard outlet. The 46" long shaft attaches to the motor coupler and one 14" hydrofoil impeller with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.

Motor

Horsepower 3/4
Motor Enclosure Totally Enclosed Fan Cooled
MotorRPM 1750
Motor Type Electric
Baldor Model or Equivalent VL3507
IPTS Model RPQ1-5-56C
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Wired Clockwise
Phase Single
Voltage 115/230
Hertz 60
FL Amps 8.4:4.2
ServiceFactor 1.00
InsulationClass B
Drive Gear Reduced
Gearbox Ratio 5:1
Gearbox RPM 350

Impeller

Quantity 1
Diameter 14"
Style Hydrofoil
Bore 1"
Rotation Left Hand
Material Construction 316 Stainless Steel
Blade Construction Welded
Set Screw 2

Mount

Adjustable 90° vertical and 360° horizontal adjustment
Construction Cast Aluminum
Features Hand Knob

Shaft

Exposed Dimensions 1" x 46"
Construction 316 Stainless Steel

$2,523.00
Approx. Lead Time
1 Business Days *
* If ordered before noon EST will ship same day. Orders in quantity or with other items may extend lead times.
