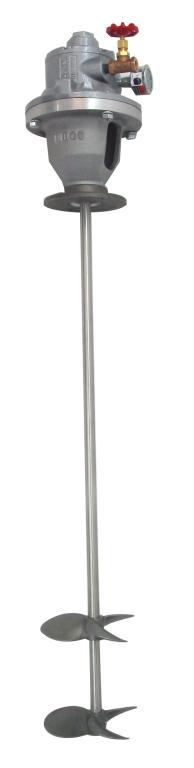

1-1/2 HP Air Direct Drive Flange Mount Mixer
Model Number: FL1-A
Part Number: 21A6200
INDCO's flange mount mixers can be fastened to almost any flat surface above the tank, making them versatile and easy to use. The 4-5/8" OD steel flange has (4) 3/8" diameter bolt holes on a 3-1/2" bolt circle. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The air control valve adjust speeds between 300-3000 RPM. The 33" shaft attaches to the motor coupler and two 4" 3-blade square pitch propellers with set screws. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1-1/2 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 4AM-NRV-50C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 70 CFM |
| Air Inlet Size | 1/4" |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 4" |
| Style | 3-Blade Square Pitch |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Construction | Steel |
| Features | 3-1/2" Bolt Circle on Flange |
Shaft
| Exposed Dimensions | 5/8" X 33" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 24 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: FL1-A
INDCO's flange mount mixers can be fastened to almost any flat surface above the tank, making them versatile and easy to use. The 4-5/8" OD steel flange has (4) 3/8" diameter bolt holes on a 3-1/2" bolt circle. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The air control valve adjust speeds between 300-3000 RPM. The 33" shaft attaches to the motor coupler and two 4" 3-blade square pitch propellers with set screws. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1-1/2 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 4AM-NRV-50C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 70 CFM |
| Air Inlet Size | 1/4" |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 4" |
| Style | 3-Blade Square Pitch |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Construction | Steel |
| Features | 3-1/2" Bolt Circle on Flange |
Shaft
| Exposed Dimensions | 5/8" X 33" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 24 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
