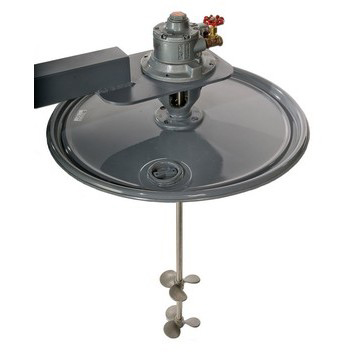

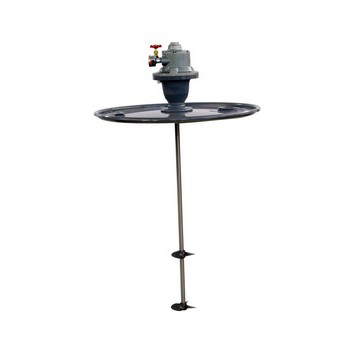

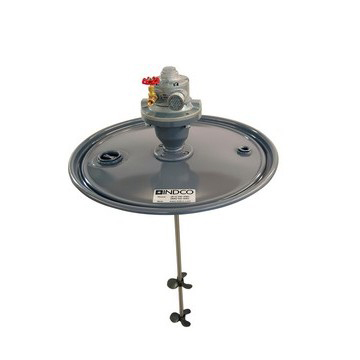

3/4 HP Air Direct Drive Drum Lid Mixer
Model Number: DL5-A
Part Number: 21A6126
Powerful and portable, INDCO's DL series direct drive drum lid mixer is excellent for medium viscosity materials and includes a standard 55 gallon drum lid. The 3/4 HP air motor model provides maximum agitation when supplied with 100 PSI @ 30 CFM. See our air motor performance guide for operation at lower air flow. The speed control valve provides operation between 300-3000 RPM. The 30" shaft attaches to the motor coupler and two 4" impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 3/4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 2AM-NRV-90 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 30 CFM |
| Air Inlet Size | 1/4" |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 4" |
| Style | 3-Bade Square Pitch |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Construction | Steel |
| Features | Drum Lid |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 39 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: DL5-A
Powerful and portable, INDCO's DL series direct drive drum lid mixer is excellent for medium viscosity materials and includes a standard 55 gallon drum lid. The 3/4 HP air motor model provides maximum agitation when supplied with 100 PSI @ 30 CFM. See our air motor performance guide for operation at lower air flow. The speed control valve provides operation between 300-3000 RPM. The 30" shaft attaches to the motor coupler and two 4" impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 3/4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 2AM-NRV-90 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 30 CFM |
| Air Inlet Size | 1/4" |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 4" |
| Style | 3-Bade Square Pitch |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Construction | Steel |
| Features | Drum Lid |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 39 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
