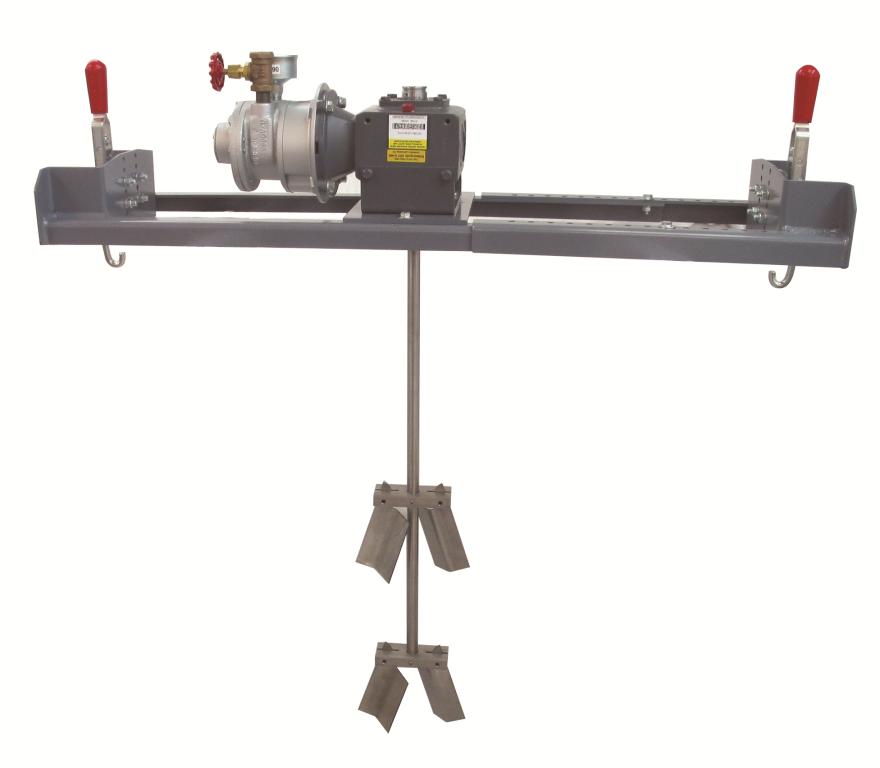

1-1/2 HP Air Gear Drive IBC Tote Mixer Deluxe Adjustable Bracket

1-1/2 HP Air Gear Drive IBC Tote Mixer Deluxe Adjustable Bracket Image
1-1/2 HP Air Gear Drive IBC Tote Mixer Deluxe Adjustable Bracket Image

Model Number: BGTC-150A

Part Number: 21A5342

INDCO's Deluxe IBC Tote Mixer offers enhanced features for operational efficiency and ergonomics. The toggle feature hooks directly to various cage sizes reducing installation and changeover times.  A lifting eye option is available to maneuver your mixer. This gear reduced model runs 40-400 RPM and provides the torque necessary for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow.  The 36" long mixing shaft attaches to a coupler and two 12" collapsible impellers with set screws.  The impellers are designed to enter 6" tote openings and open to 12" when in operation.  The expandable bracket mount fits totes between 34" and 48" wide.  All wetted parts are stainless steel for chemical resistance.  This model features a Gast air motor which is known for its rugged construction and reliability.  Air motors deliver variable speed for maximum flexibility or multiple applications.  They motors are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.

Motor

Horsepower 1-1/2
MotorRPM 300-3000
Motor Type Air
Gast Model 4AM-NRV-50C
Boston Model or Equivalent HF718R-7.5Z-B5-H-P12
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Reversible
Air Requirements 100 PSI @ 70 CFM
Air Inlet Size 1/4"
Drive Gear Reduced
Gearbox Ratio 7.5:1
Gearbox Design Right Angle

Impeller

Quantity 2
Diameter 12"
Style Folding
Bore 3/4"
Rotation Left Hand
Material Construction 304 Stainless Steel
Blade Construction Laser Cut
Set Screw 2

Mount

Adjustable 34" up to 48"
Construction Steel
Features Adjustable Toggle Clamps

Shaft

Exposed Dimensions 3/4" x 36"
Construction 316 Stainless Steel

Model Number: BGTC-150A

INDCO's Deluxe IBC Tote Mixer offers enhanced features for operational efficiency and ergonomics. The toggle feature hooks directly to various cage sizes reducing installation and changeover times.  A lifting eye option is available to maneuver your mixer. This gear reduced model runs 40-400 RPM and provides the torque necessary for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow.  The 36" long mixing shaft attaches to a coupler and two 12" collapsible impellers with set screws.  The impellers are designed to enter 6" tote openings and open to 12" when in operation.  The expandable bracket mount fits totes between 34" and 48" wide.  All wetted parts are stainless steel for chemical resistance.  This model features a Gast air motor which is known for its rugged construction and reliability.  Air motors deliver variable speed for maximum flexibility or multiple applications.  They motors are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.

Motor

Horsepower 1-1/2
MotorRPM 300-3000
Motor Type Air
Gast Model 4AM-NRV-50C
Boston Model or Equivalent HF718R-7.5Z-B5-H-P12
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Reversible
Air Requirements 100 PSI @ 70 CFM
Air Inlet Size 1/4"
Drive Gear Reduced
Gearbox Ratio 7.5:1
Gearbox Design Right Angle

Impeller

Quantity 2
Diameter 12"
Style Folding
Bore 3/4"
Rotation Left Hand
Material Construction 304 Stainless Steel
Blade Construction Laser Cut
Set Screw 2

Mount

Adjustable 34" up to 48"
Construction Steel
Features Adjustable Toggle Clamps

Shaft

Exposed Dimensions 3/4" x 36"
Construction 316 Stainless Steel

$3,417.50
Approx. Lead Time
2 Business Days
* Orders in quantity or with other items may extend lead times.
