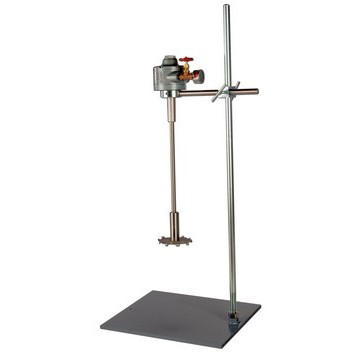

1-1/2 HP Air Stirrer & Blade Package with Stand

1-1/2 HP Air Stirrer & Blade Package with Stand Image

Model Number: AS15D-S

Part Number: 21J1008

This stirrer package includes an air drive head (model AS4AC), a 1/2" x 18" stainless steel shaft, a 4" design A dispersion blade (model DB4A), a mixer support clamp (model BL426) and a 36" tall mixer stand with a 14" x 16" base (model IAX-23). The air drive head is lightweight and offers variable speed for mixing solvents or other flammable materials with less risk than electric models.  The rod and ring bracket allows the user to mount the drive head on the stand when used with the support clamp.  The coupler mounts to the motor shaft with set screws and accepts a 1/2" mixing shaft.  The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor chart for performance data.  This unit is rated for heavy usage with a maximum torque of 55 in-lbs. It features a Gast air motor which is known for its rugged construction and reliability.  Variable speed with air motors provides flexibility for mixing in multiple applications.  Air motors are also lighter weight than our electric models.  Non-electrical operation reduces the possibility of explosion in a combustible environment.

Motor

Horsepower 1-1/2
MotorRPM 300-3000
Motor Type Air
Gast Model 4AM-NRV-22B
Motor Frame Hub
Motor Exterior Painted
Rotation Top Reversible
Air Requirements 100 PSI @ 70 CFM
Air Inlet Size 1/4"

Impeller

Quantity 1
Diameter 4"
Style Dispersion Blade
Center Hole 1/2"
Design A
Material Construction 304 Stainless Steel

Mount

Adjustable 36" Tall Stand
Construction Steel
Features 14" x 16" Stand Base

Shaft

Exposed Dimensions 1/2" X 18"
Construction 316 Stainless Steel

Model Number: AS15D-S

This stirrer package includes an air drive head (model AS4AC), a 1/2" x 18" stainless steel shaft, a 4" design A dispersion blade (model DB4A), a mixer support clamp (model BL426) and a 36" tall mixer stand with a 14" x 16" base (model IAX-23). The air drive head is lightweight and offers variable speed for mixing solvents or other flammable materials with less risk than electric models.  The rod and ring bracket allows the user to mount the drive head on the stand when used with the support clamp.  The coupler mounts to the motor shaft with set screws and accepts a 1/2" mixing shaft.  The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor chart for performance data.  This unit is rated for heavy usage with a maximum torque of 55 in-lbs. It features a Gast air motor which is known for its rugged construction and reliability.  Variable speed with air motors provides flexibility for mixing in multiple applications.  Air motors are also lighter weight than our electric models.  Non-electrical operation reduces the possibility of explosion in a combustible environment.

Motor

Horsepower 1-1/2
MotorRPM 300-3000
Motor Type Air
Gast Model 4AM-NRV-22B
Motor Frame Hub
Motor Exterior Painted
Rotation Top Reversible
Air Requirements 100 PSI @ 70 CFM
Air Inlet Size 1/4"

Impeller

Quantity 1
Diameter 4"
Style Dispersion Blade
Center Hole 1/2"
Design A
Material Construction 304 Stainless Steel

Mount

Adjustable 36" Tall Stand
Construction Steel
Features 14" x 16" Stand Base

Shaft

Exposed Dimensions 1/2" X 18"
Construction 316 Stainless Steel

$1,422.00
Approx. Lead Time
2 Business Days
* Orders in quantity or with other items may extend lead times.
