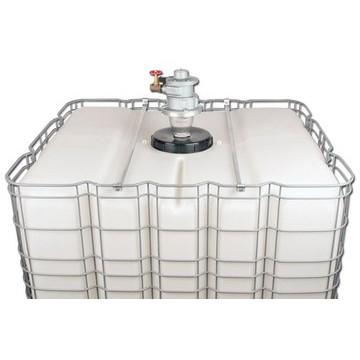

1-1/2 HP Air Direct Drive IBC Tote Lid Mixer

1-1/2 HP Air Direct Drive IBC Tote Lid Mixer Image
1-1/2 HP Air Direct Drive IBC Tote Lid Mixer Image

Model Number: TL-11A

Part Number: 21A5367

INDCO's newest IBC tote mixer is easy to install with a 6" screw cap. The 300-3000 RPM variable speed is ideal for mixing light viscosity materials. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM.  See our air motor performance guide for operation at lower air flow.  The 32" exposed shaft attaches to the motor coupler and two 6" 3-blade square pitch impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.

Motor

Horsepower 1-1/2
MotorRPM 300-3000
Motor Type Air
Gast Model 4AM-NRV-50C
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Reversible
Air Requirements 100 PSI @ 70 CFM
Air Inlet Size 1/4"

Impeller

Quantity 2
Diameter 6"
Style 3-Blade Square Pitch
Bore 3/4"
Rotation Left Hand
Pitch 1:1
Material Construction 316L Stainless Steel
Set Screw 1

Mount

Construction Plastic

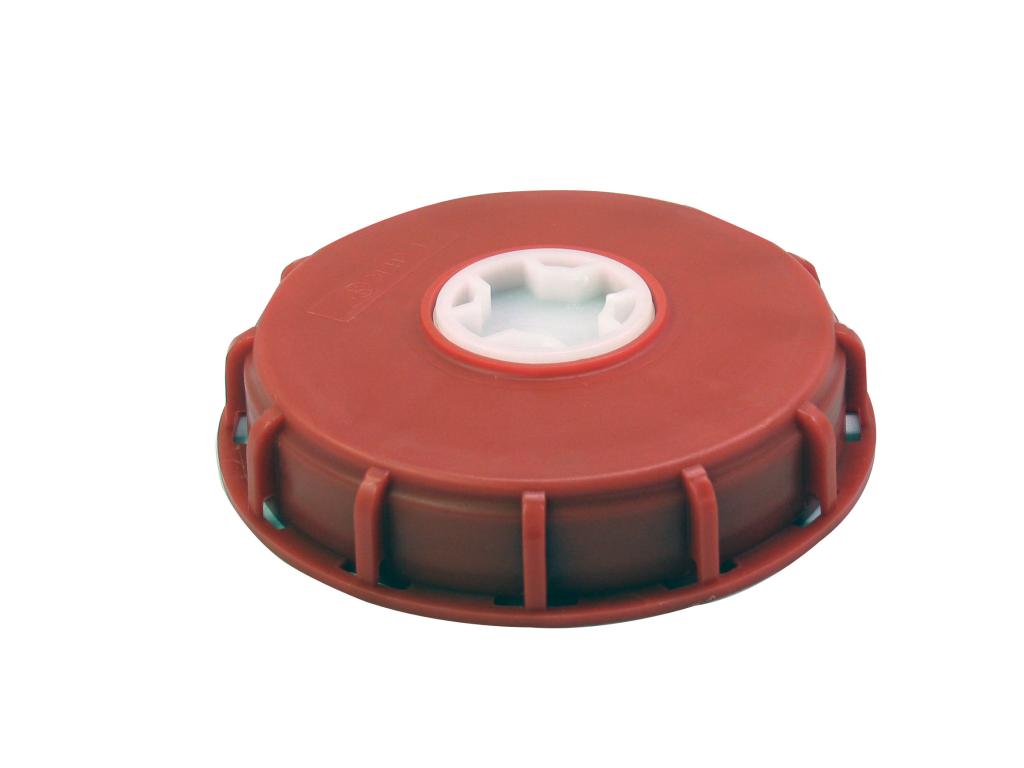

Features 6" IBC Screw Cap

Shaft

Exposed Dimensions 3/4" x 32"
Construction 316 Stainless Steel

Model Number: TL-11A

INDCO's newest IBC tote mixer is easy to install with a 6" screw cap. The 300-3000 RPM variable speed is ideal for mixing light viscosity materials. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM.  See our air motor performance guide for operation at lower air flow.  The 32" exposed shaft attaches to the motor coupler and two 6" 3-blade square pitch impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.

Motor

Horsepower 1-1/2
MotorRPM 300-3000
Motor Type Air
Gast Model 4AM-NRV-50C
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Reversible
Air Requirements 100 PSI @ 70 CFM
Air Inlet Size 1/4"

Impeller

Quantity 2
Diameter 6"
Style 3-Blade Square Pitch
Bore 3/4"
Rotation Left Hand
Pitch 1:1
Material Construction 316L Stainless Steel
Set Screw 1

Mount

Construction Plastic
Features 6" IBC Screw Cap

Shaft

Exposed Dimensions 3/4" x 32"
Construction 316 Stainless Steel

$1,187.50
Approx. Lead Time
2 Business Days
* Orders in quantity or with other items may extend lead times.
