3 HP ELECTRIC 5 GALLON LIFT MIXER

3 HP ELECTRIC 5 GALLON LIFT MIXER Image
3 HP ELECTRIC 5 GALLON LIFT MIXER Image

Model Number: HSM-03V

Part Number: 21D2048

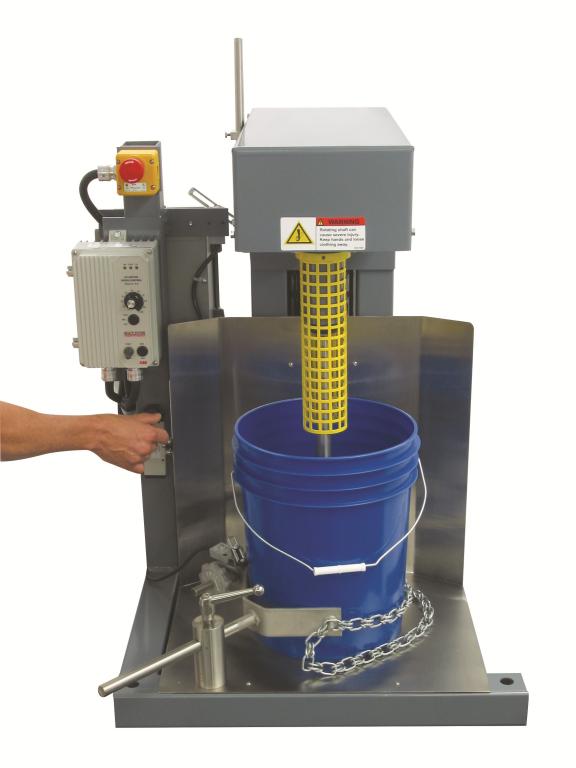

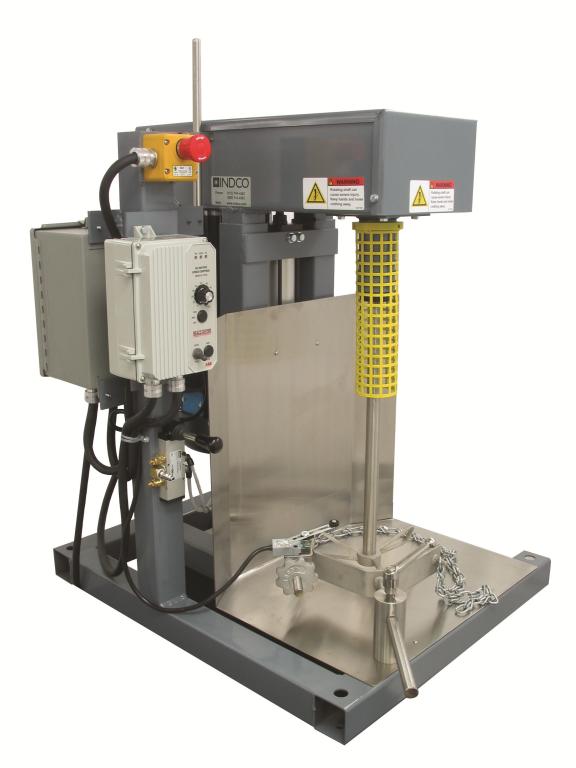

The HSM-03V is INDCO’s most versatile, fully-featured benchtop lift style mixer and disperser for containers up to five gallons. Initially designed in collaboration with the printing ink industry, this unique mixer is ideal for a wide range of liquid products.  It offers the speed and torque characteristics to handle challenging mixing and dispersion applications normally requiring more than one mixer.  The constant torque 3-hp DC motor, two-pulley belt-driven transmission and electronic control mixes formulations exceeding 100,000 cps at low speed and performs single shaft dispersions up to 50,000 cps at higher RPM.   Shaft speed range is 60-1,200 RPM and can be modified to 135-2,800 RPM by the user.

The HSM-03V is equipped with a 304 stainless steel work surface and back splash, adjustable container restraint and standard safety features including limit switches to stop shaft rotation when the mixer is raised or if the container is unsecure, physical shaft guard and front-facing E-stop.  The heavy-duty welded carbon steel frame is designed to withstand rigorous mixing loads with minimal deflection.  Mixing is achieved using the standard bow-tie impeller (included) or optional marine style, hydrofoil, and axial flow turbine impellers.  Dispersions can be completed with one of multiple available dispersion blade designs.  The unit requires 230 Volt, single-phase electrical service.

Standard finish is a gray enamel painted steel frame with an optional powder coated white epoxy available.  Contact our customer service reps or applications engineers for more information and a free application analysis.

Motor

Horsepower 3
Motor Enclosure TEFC
MotorRPM 1750
Motor Type Electric
Motor Frame 145TC
Motor Exterior Painted
Phase DC
Voltage 180 DC
Hertz DC
FL Amps 14
ServiceFactor 1.00
InsulationClass H

Impeller

Quantity 1
Diameter 9”
Style Bow Tie
Center Hole N/A
Material Construction 316 stainless steel
Blade Construction Laser cut

Mount

Adjustable Raises 15"
Construction Steel
Features Table top with pneumatic lift

Shaft

Exposed Dimensions 1” x 19”
Construction 316 Stainless Steel

Model Number: HSM-03V

The HSM-03V is INDCO’s most versatile, fully-featured benchtop lift style mixer and disperser for containers up to five gallons. Initially designed in collaboration with the printing ink industry, this unique mixer is ideal for a wide range of liquid products.  It offers the speed and torque characteristics to handle challenging mixing and dispersion applications normally requiring more than one mixer.  The constant torque 3-hp DC motor, two-pulley belt-driven transmission and electronic control mixes formulations exceeding 100,000 cps at low speed and performs single shaft dispersions up to 50,000 cps at higher RPM.   Shaft speed range is 60-1,200 RPM and can be modified to 135-2,800 RPM by the user.

The HSM-03V is equipped with a 304 stainless steel work surface and back splash, adjustable container restraint and standard safety features including limit switches to stop shaft rotation when the mixer is raised or if the container is unsecure, physical shaft guard and front-facing E-stop.  The heavy-duty welded carbon steel frame is designed to withstand rigorous mixing loads with minimal deflection.  Mixing is achieved using the standard bow-tie impeller (included) or optional marine style, hydrofoil, and axial flow turbine impellers.  Dispersions can be completed with one of multiple available dispersion blade designs.  The unit requires 230 Volt, single-phase electrical service.

Standard finish is a gray enamel painted steel frame with an optional powder coated white epoxy available.  Contact our customer service reps or applications engineers for more information and a free application analysis.

Motor

Horsepower 3
Motor Enclosure TEFC
MotorRPM 1750
Motor Type Electric
Motor Frame 145TC
Motor Exterior Painted
Phase DC
Voltage 180 DC
Hertz DC
FL Amps 14
ServiceFactor 1.00
InsulationClass H

Impeller

Quantity 1
Diameter 9”
Style Bow Tie
Center Hole N/A
Material Construction 316 stainless steel
Blade Construction Laser cut

Mount

Adjustable Raises 15"
Construction Steel
Features Table top with pneumatic lift

Shaft

Exposed Dimensions 1” x 19”
Construction 316 Stainless Steel

$8,424.00
Approx. Lead Time
20 Business Days
* Orders in quantity or with other items may extend lead times.
