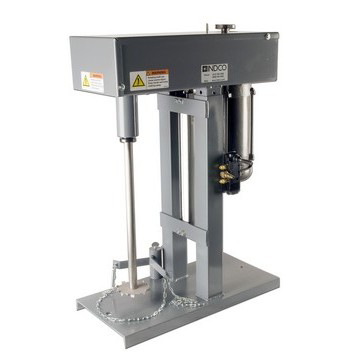

1-1/2 HP Explosion Proof Electric Benchtop Disperser
Model Number: HS-115E-A1
Part Number: 21D2070
INDCO's 1-1/2 HP electric bench top unit reliably disperses batches up to five gallons. Raise or lower the pneumatic cylinder 15" with the easy to use toggle valve. The lift cylinder requires 5 CFM at 50 PSI. The hand knob on top of the unit adjusts the speed from 1000-4100 RPM. The 1" x 15" shaft is drilled and tapped on the end for bolting on the included 4" diameter design A dispersion blade. The container holder secures up to 5-gallon pails with the adjustable chain restraint. The explosion proof motor requires 115/230 volt, single phase 60 Hz input and is equipped with motor leads only. This electric model features an ABB or an equivalent brand motor. All wetted parts are constructed from 300 series stainless steel.
Motor
| Horsepower | 1-1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5024A |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 16/8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
Impeller
| Quantity | 1 |
| Diameter | 4" |
| Style | Dispersion Blade |
| Center Hole | 1/2" |
| Design | A |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
Mount
| Adjustable | Raises 15" |
| Construction | Steel |
| Features | Benchtop Base with Air Cylinder |
Shaft
| Exposed Dimensions | 1" x 15" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: HS-115E-A1
INDCO's 1-1/2 HP electric bench top unit reliably disperses batches up to five gallons. Raise or lower the pneumatic cylinder 15" with the easy to use toggle valve. The lift cylinder requires 5 CFM at 50 PSI. The hand knob on top of the unit adjusts the speed from 1000-4100 RPM. The 1" x 15" shaft is drilled and tapped on the end for bolting on the included 4" diameter design A dispersion blade. The container holder secures up to 5-gallon pails with the adjustable chain restraint. The explosion proof motor requires 115/230 volt, single phase 60 Hz input and is equipped with motor leads only. This electric model features an ABB or an equivalent brand motor. All wetted parts are constructed from 300 series stainless steel.
Motor
| Horsepower | 1-1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5024A |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 16/8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
Impeller
| Quantity | 1 |
| Diameter | 4" |
| Style | Dispersion Blade |
| Center Hole | 1/2" |
| Design | A |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
Mount
| Adjustable | Raises 15" |
| Construction | Steel |
| Features | Benchtop Base with Air Cylinder |
Shaft
| Exposed Dimensions | 1" x 15" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
8 Business Days * Orders in quantity or with other items may extend lead times.
