1/2 HP TEFC Electric Benchtop Inverter Drive Disperser

1/2 HP TEFC Electric Benchtop Inverter Drive Disperser Image
1/2 HP TEFC Electric Benchtop Inverter Drive Disperser Image

Model Number: HS-105N-A

Part Number: 21D2004

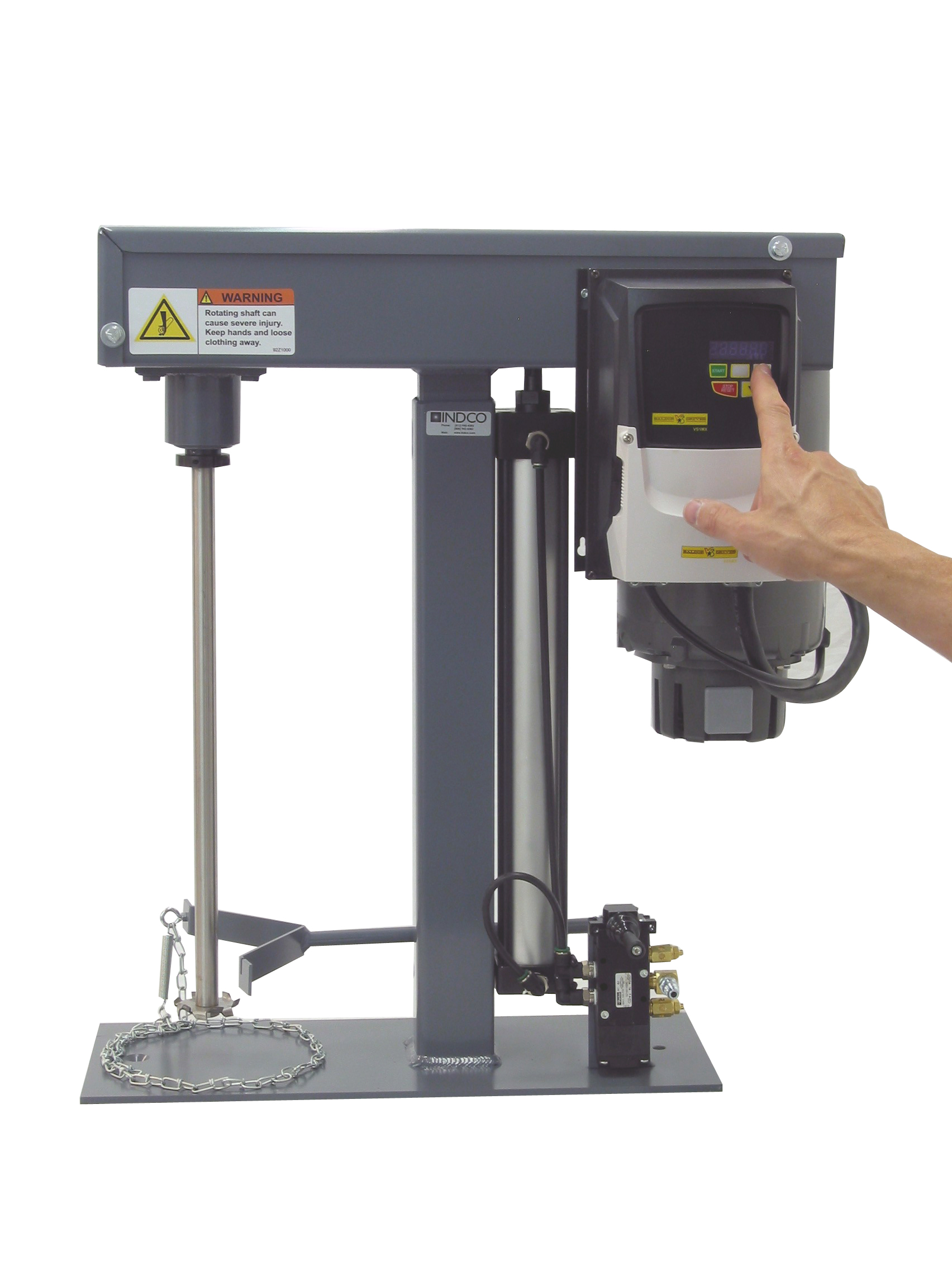

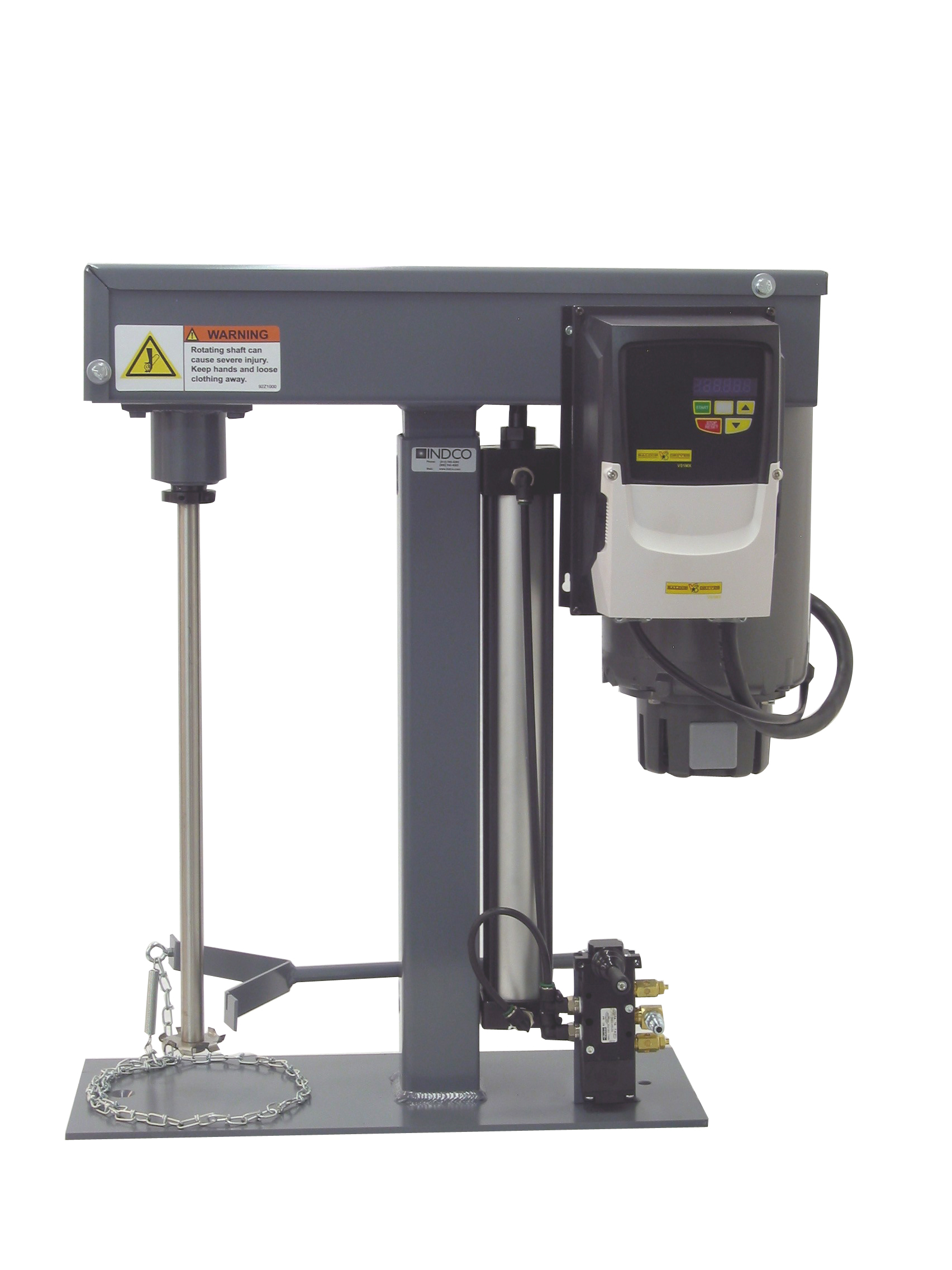

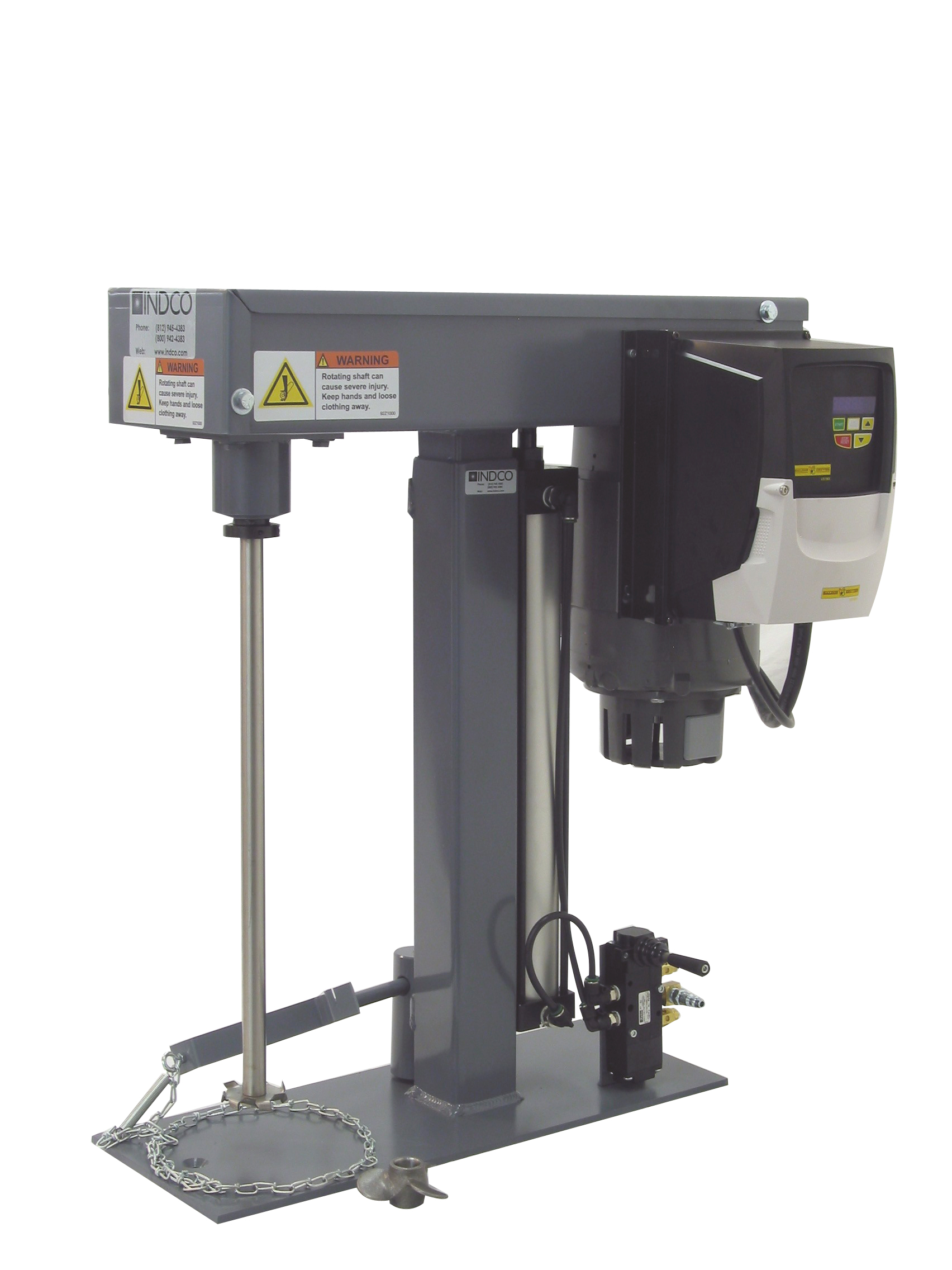

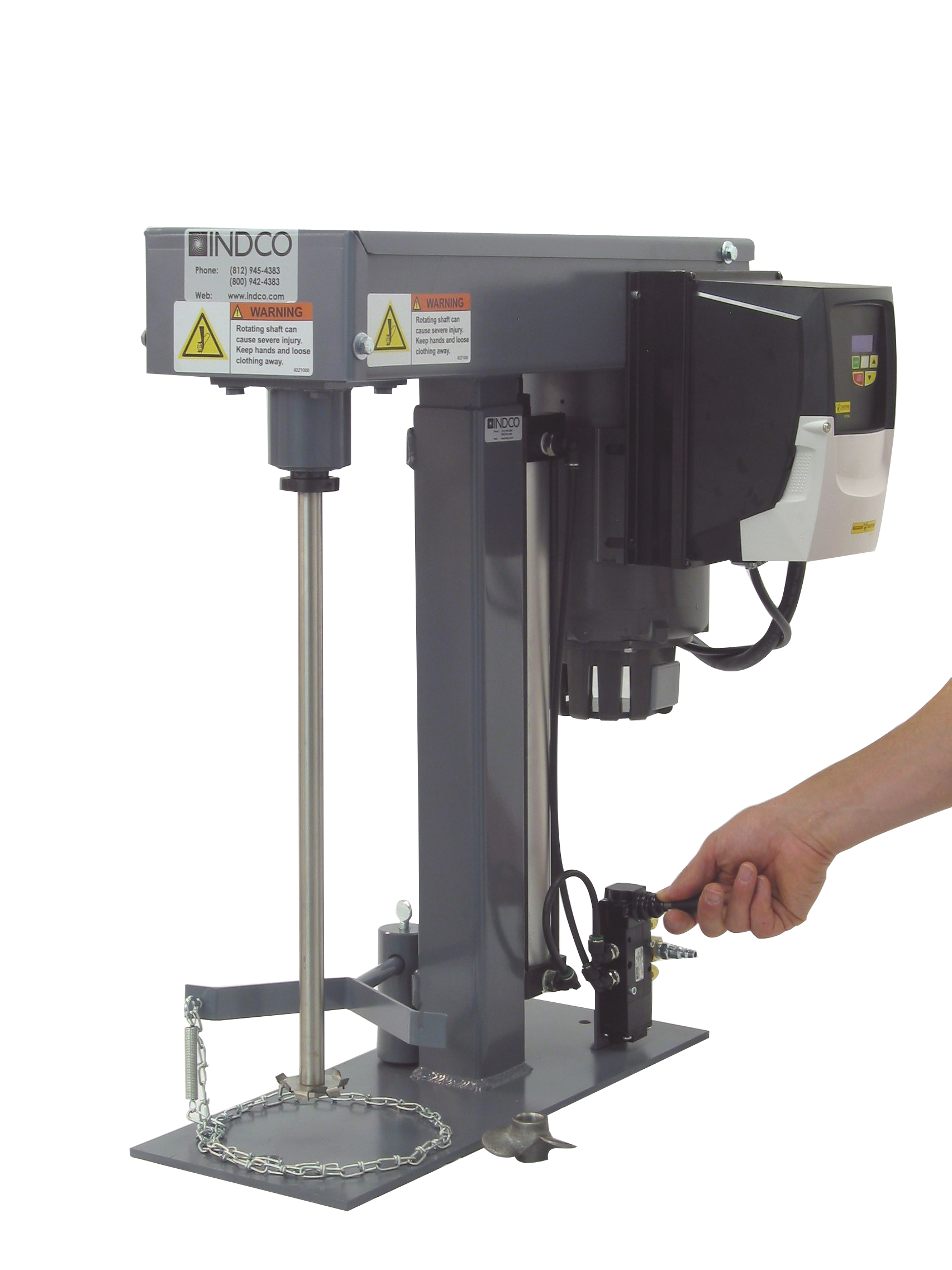

INDCO's 1/2 HP electric bench top disperser processes batches up to one gallon.   This inverter drive model has a speed range of 336-3360 RPMs.  Use either a 3" 3-blade square pitch propeller with set screws or a 2" design A dispersion blade with bottom threaded shaft bolt on the 17" long mixing shaft.  Raise or lower the unit 15" with the pneumatic cylinder and toggle valve.  The cylinder requires 5 CFM at 50 PSI.   Securely hold the pail in place with the adjustable chain restraint. The TEFC motor requires 115 volt, 60 hz. All wetted parts are constructed from 300 series stainless steel.

Motor

Motor Enclosure TEFC Totally Enclosed Fan Cooled
Motor Type Electric
Baldor Model or Equivalent ID N M 3538
Motor Frame 56
Phase Single

Impeller

Quantity 0
Diameter "3" propeller

Mount

Adjustable Raises 15"
Construction Steel
Features Benchtop Base with Air Cylinder

Shaft

Exposed Dimensions 3/4" x 17"
Construction 316 Stainless Steel

Model Number: HS-105N-A

INDCO's 1/2 HP electric bench top disperser processes batches up to one gallon.   This inverter drive model has a speed range of 336-3360 RPMs.  Use either a 3" 3-blade square pitch propeller with set screws or a 2" design A dispersion blade with bottom threaded shaft bolt on the 17" long mixing shaft.  Raise or lower the unit 15" with the pneumatic cylinder and toggle valve.  The cylinder requires 5 CFM at 50 PSI.   Securely hold the pail in place with the adjustable chain restraint. The TEFC motor requires 115 volt, 60 hz. All wetted parts are constructed from 300 series stainless steel.

Motor

Motor Enclosure TEFC Totally Enclosed Fan Cooled
Motor Type Electric
Baldor Model or Equivalent ID N M 3538
Motor Frame 56
Phase Single

Impeller

Quantity 0
Diameter "3" propeller

Mount

Adjustable Raises 15"
Construction Steel
Features Benchtop Base with Air Cylinder

Shaft

Exposed Dimensions 3/4" x 17"
Construction 316 Stainless Steel

$2,999.50
Approx. Lead Time
8 Business Days
* Orders in quantity or with other items may extend lead times.
