1/2 HP Variable Speed Electric 5 Gallon Heavy Duty Mixer

1/2 HP Variable Speed Electric 5 Gallon Heavy Duty Mixer Image
1/2 HP Variable Speed Electric 5 Gallon Heavy Duty Mixer Image

Model Number: FGM-5V

Part Number: 21A6320

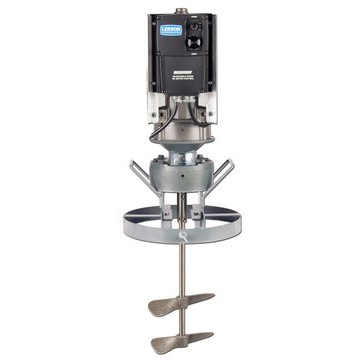

Our 5-gallon heavy-duty mixer mounts directly to pails up to 12-1/4" wide with its ring mount design and two handles.  The high-torque 5:1 gear reducer vigorously agitates heavy viscosity materials.  The quick-change coupler and shaft design features a shaft pin that locks in place during rotation.  The two 9" two-blade 319 aluminum propellers attach to the 15" long shaft with set screws.
The FGM-5V model features a 1/2 HP totally-enclosed non-ventilated motor that is ready to plug into a standard outlet.  This model features a variable speed drive and operates at 0-350 RPM. This electric model features an ABB or an equivalent brand motor.

Motor

Horsepower 1/2
Motor Enclosure Totally Enclosed Non Ventilated
MotorRPM 1750
Motor Type Electric
Baldor Model or Equivalent CDP3330
IPTS Model RPQ1-5-56C
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Wired Clockwise
Phase Single
Voltage 90
Hertz 60
InsulationClass F
Drive Gear Reduced
Gearbox Ratio 5:1
Gearbox RPM 0-350

Impeller

Quantity 2
Diameter 9"
Style 2-Blade
Bore 5/8"
Rotation Left Hand
Material Construction Aluminum
Blade Construction Cast
Set Screw 2

Mount

Construction Steel
Features Ring Mount for pails up to 12-1/4" Wide

Shaft

Exposed Dimensions 5/8" x 15"
Construction 316 Stainless Steel

General

Warranty 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers.
Weight 67
FOB 2
