1 HP Electric Variable Speed Direct Drive Heavy Duty Clamp Mount Mixer
Model Number: D-11V
Part Number: 21A4003

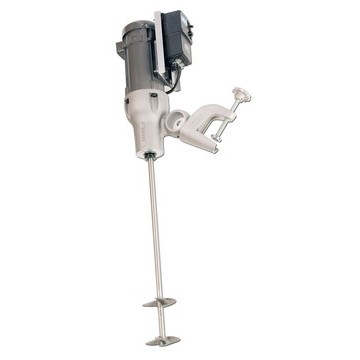

Our heavy duty clamp mount mixers are our most robust design for mixing in open top containers or with slotted lids. They feature a substantial cast aluminum clamp assembly and nosecone with a pressed-in bearing for maximum shaft support. The mass of the clamp and nosecone combined with larger shaft diameters minimize vibration during operation. The clamp mount has 90° vertical and 360° horizontal adjustments for versatile mixer positioning.
This electric 1 HP direct drive model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115 voltage. The variable speed control delivers 35-1750 RPM. The 58" long shaft attaches to the motor coupler and two 5" impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3445 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115 |
| InsulationClass | F |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 5" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 90° vertical and 360° horizontal adjustment |
| Construction | Cast Aluminum |
| Features | Hand Knob |
Shaft
| Exposed Dimensions | 3/4" x 58" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: D-11V
Our heavy duty clamp mount mixers are our most robust design for mixing in open top containers or with slotted lids. They feature a substantial cast aluminum clamp assembly and nosecone with a pressed-in bearing for maximum shaft support. The mass of the clamp and nosecone combined with larger shaft diameters minimize vibration during operation. The clamp mount has 90° vertical and 360° horizontal adjustments for versatile mixer positioning.
This electric 1 HP direct drive model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115 voltage. The variable speed control delivers 35-1750 RPM. The 58" long shaft attaches to the motor coupler and two 5" impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3445 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115 |
| InsulationClass | F |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 5" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 90° vertical and 360° horizontal adjustment |
| Construction | Cast Aluminum |
| Features | Hand Knob |
Shaft
| Exposed Dimensions | 3/4" x 58" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
1 Business Days * * If ordered before noon EST will ship same day. Orders in quantity or with other items may extend lead times.
