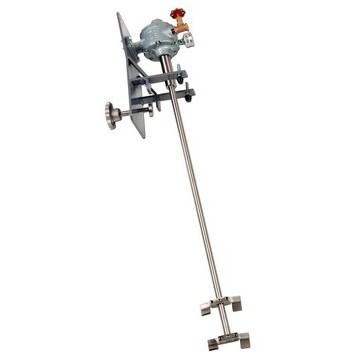

1-1/2 HP Air Direct Drive Drum Bung Hole Entering Clamp Mixer

1-1/2 HP Air Direct Drive Drum Bung Hole Entering Clamp Mixer Image
1-1/2 HP Air Direct Drive Drum Bung Hole Entering Clamp Mixer Image

Model Number: CB1-A

Part Number: 21A5127

INDCO's CB series mixers are designed for use on either a closed or open steel drum of low to medium viscosity materials. The unique clamp adjusts to the rim of the drum with the hand knob and sits at an angle such that it will enter through a 2" drum lid bung. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 300-3000 RPM. The collapsible impellers fit through the 2" opening and expand to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and two 4" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.

Motor

Horsepower 1-1/2
MotorRPM 300-3000
Motor Type Air
Gast Model 4AM-FRV-13C
Motor Frame Foot
Motor Exterior Painted
Rotation Top Reversible
Air Requirements 100 PSI @ 70 CFM
Air Inlet Size 1/4"
Drive Direct

Impeller

Quantity 2
Diameter 4"
Style Folding
Bore 5/8"
Rotation Left Hand
Material Construction 304 Stainless Steel
Blade Construction Laser Cut
Set Screw 2

Mount

Adjustable Hand Knob
Construction Steel
Features steel drum rim required to clamp - allows to be inserted into closed or open drums

Shaft

Exposed Dimensions 5/8" x 32"
Construction 316 Construction

Model Number: CB1-A

INDCO's CB series mixers are designed for use on either a closed or open steel drum of low to medium viscosity materials. The unique clamp adjusts to the rim of the drum with the hand knob and sits at an angle such that it will enter through a 2" drum lid bung. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 300-3000 RPM. The collapsible impellers fit through the 2" opening and expand to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and two 4" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.

Motor

Horsepower 1-1/2
MotorRPM 300-3000
Motor Type Air
Gast Model 4AM-FRV-13C
Motor Frame Foot
Motor Exterior Painted
Rotation Top Reversible
Air Requirements 100 PSI @ 70 CFM
Air Inlet Size 1/4"
Drive Direct

Impeller

Quantity 2
Diameter 4"
Style Folding
Bore 5/8"
Rotation Left Hand
Material Construction 304 Stainless Steel
Blade Construction Laser Cut
Set Screw 2

Mount

Adjustable Hand Knob
Construction Steel
Features steel drum rim required to clamp - allows to be inserted into closed or open drums

Shaft

Exposed Dimensions 5/8" x 32"
Construction 316 Construction

$1,196.50
Approx. Lead Time
2 Business Days
* Orders in quantity or with other items may extend lead times.
