3/4 HP Air Direct Drive Drum Bung Hole Mount Mixer

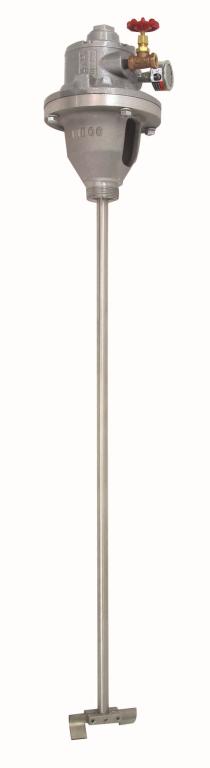

3/4 HP Air Direct Drive Drum Bung Hole Mount Mixer Image
3/4 HP Air Direct Drive Drum Bung Hole Mount Mixer Image

Model Number: BU5-A

Part Number: 21A5103

INDCO's BU series mixers are designed for use on a closed steel drum of low to medium viscosity materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. The 3/4 HP air motor model provides maximum agitation when supplied with 100 PSI @ 30 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 300-3000 RPM. The 32" long mixing shaft attaches to the motor coupler and 4" impeller with set screws. The collapsible impeller fits through the 2" opening and expands to 4" in diameter when in operation. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.  (Drum Lid NOT included)

Motor

Horsepower 3/4
MotorRPM 300-3000
Motor Type Air
Gast Model 2AM-NCC-16
Motor Frame Hub
Motor Exterior Painted
Rotation Top Clockwise
Air Requirements 100 PSI @ 30 CFM
Air Inlet Size 1/4"
Drive Direct

Impeller

Quantity 1
Diameter 4"
Style Folding
Bore 5/8"
Rotation Left Hand
Material Construction 304 Stainless Steel
Blade Construction Laser Cut
Set Screw 2

Mount

Adjustable 2" NPT
Construction Aluminum
Features Quick Mounting

Shaft

Exposed Dimensions 5/8" x 30"
Construction 316 Construction

Model Number: BU5-A

INDCO's BU series mixers are designed for use on a closed steel drum of low to medium viscosity materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. The 3/4 HP air motor model provides maximum agitation when supplied with 100 PSI @ 30 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 300-3000 RPM. The 32" long mixing shaft attaches to the motor coupler and 4" impeller with set screws. The collapsible impeller fits through the 2" opening and expands to 4" in diameter when in operation. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.  (Drum Lid NOT included)

Motor

Horsepower 3/4
MotorRPM 300-3000
Motor Type Air
Gast Model 2AM-NCC-16
Motor Frame Hub
Motor Exterior Painted
Rotation Top Clockwise
Air Requirements 100 PSI @ 30 CFM
Air Inlet Size 1/4"
Drive Direct

Impeller

Quantity 1
Diameter 4"
Style Folding
Bore 5/8"
Rotation Left Hand
Material Construction 304 Stainless Steel
Blade Construction Laser Cut
Set Screw 2

Mount

Adjustable 2" NPT
Construction Aluminum
Features Quick Mounting

Shaft

Exposed Dimensions 5/8" x 30"
Construction 316 Construction

$1,123.50
Approx. Lead Time
2 Business Days
* Orders in quantity or with other items may extend lead times.
Add To Cart
