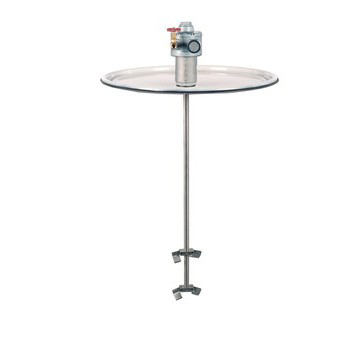

1-1/2 HP Air Direct Drive Drum Bung Hole Mount Mixer

1-1/2 HP Air Direct Drive Drum Bung Hole Mount Mixer Image
1-1/2 HP Air Direct Drive Drum Bung Hole Mount Mixer Image

Model Number: BU1-A

Part Number: 21A5093

INDCO's BU series mixers are designed for use on a closed steel drum of low to medium viscosity materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 300-3000 RPM. The collapsible impellers fit through the 2" opening and expand to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and two 4" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.

Motor

Horsepower 1-1/2
MotorRPM 300-3000
Motor Type Air
Gast Model 4AM-NRV-22B
Motor Frame Hub
Motor Exterior Painted
Rotation Top Reversible
Air Requirements 100 PSI @ 70 CFM
Air Inlet Size 1/4"
Drive Direct

Impeller

Quantity 2
Diameter 4"
Style Folding
Bore 5/8"
Rotation Left Hand
Material Construction 304 Stainless Steel
Blade Construction Laser Cut
Set Screw 2

Mount

Adjustable 2" NPT
Construction Aluminum
Features Quick Mounting

Shaft

Exposed Dimensions 5/8" x 30"
Construction 316 Construction

Model Number: BU1-A

INDCO's BU series mixers are designed for use on a closed steel drum of low to medium viscosity materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 300-3000 RPM. The collapsible impellers fit through the 2" opening and expand to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and two 4" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.

Motor

Horsepower 1-1/2
MotorRPM 300-3000
Motor Type Air
Gast Model 4AM-NRV-22B
Motor Frame Hub
Motor Exterior Painted
Rotation Top Reversible
Air Requirements 100 PSI @ 70 CFM
Air Inlet Size 1/4"
Drive Direct

Impeller

Quantity 2
Diameter 4"
Style Folding
Bore 5/8"
Rotation Left Hand
Material Construction 304 Stainless Steel
Blade Construction Laser Cut
Set Screw 2

Mount

Adjustable 2" NPT
Construction Aluminum
Features Quick Mounting

Shaft

Exposed Dimensions 5/8" x 30"
Construction 316 Construction

$1,303.50
Approx. Lead Time
2 Business Days
* Orders in quantity or with other items may extend lead times.
Add To Cart
