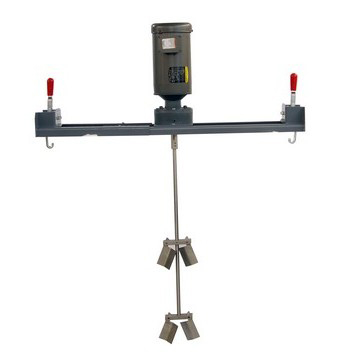

1-1/2 HP Electric TEFC Gear Drive IBC Tote Mixer Deluxe Adjustable Bracket

1-1/2 HP Electric TEFC Gear Drive IBC Tote Mixer Deluxe Adjustable Bracket Image
1-1/2 HP Electric TEFC Gear Drive IBC Tote Mixer Deluxe Adjustable Bracket Image

Model Number: BGTC-150T

Part Number: 21A5354

INDCO's Deluxe IBC Tote Mixer offers enhanced features for operational efficiency and ergonomics. The toggle feature hooks directly to various cage sizes reducing installation and changeover times.  A lifting eye option is available to maneuver your mixer. This gear reduced model runs 230 RPM and provides the torque necessary for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. The 1-1/2 HP electric motor model is ready to plug into a standard outlet. This totally-enclosed fan cooled motor requires single phase 115-230 voltage. The 36" long mixing shaft attaches to a coupler and two 14" collapsible impellers with set screws.  The impellers are designed to enter 6" tote openings and open to 14" when in operation.  The expandable bracket mount fits totes between 34" and 48" wide.  All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.

Motor

Horsepower 1-1/2
Motor Enclosure Totally Enclosed Fan Cooled
MotorRPM 1750
Motor Type Electric
Baldor Model or Equivalent VL3514
Boston Model or Equivalent HF718R-7.5Z-B5-H-P12
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Wired Clockwise
Phase Single
Voltage 115/230
Hertz 60
FL Amps 18/8
ServiceFactor 1.15
InsulationClass F
Drive Gear Reduced
Gearbox Ratio 7.5:1
Gearbox Design Right Angle

Impeller

Quantity 2
Diameter 14"
Style Folding
Bore 3/4"
Rotation Left Hand
Material Construction 304 Stainless Steel
Blade Construction Laser Cut
Set Screw 2

Mount

Adjustable 34" up to 48"
Construction Steel
Features Adjustable Toggle Clamps

Shaft

Exposed Dimensions 3/4" x 36"
Construction 316 Stainless Steel

Model Number: BGTC-150T

INDCO's Deluxe IBC Tote Mixer offers enhanced features for operational efficiency and ergonomics. The toggle feature hooks directly to various cage sizes reducing installation and changeover times.  A lifting eye option is available to maneuver your mixer. This gear reduced model runs 230 RPM and provides the torque necessary for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. The 1-1/2 HP electric motor model is ready to plug into a standard outlet. This totally-enclosed fan cooled motor requires single phase 115-230 voltage. The 36" long mixing shaft attaches to a coupler and two 14" collapsible impellers with set screws.  The impellers are designed to enter 6" tote openings and open to 14" when in operation.  The expandable bracket mount fits totes between 34" and 48" wide.  All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.

Motor

Horsepower 1-1/2
Motor Enclosure Totally Enclosed Fan Cooled
MotorRPM 1750
Motor Type Electric
Baldor Model or Equivalent VL3514
Boston Model or Equivalent HF718R-7.5Z-B5-H-P12
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Wired Clockwise
Phase Single
Voltage 115/230
Hertz 60
FL Amps 18/8
ServiceFactor 1.15
InsulationClass F
Drive Gear Reduced
Gearbox Ratio 7.5:1
Gearbox Design Right Angle

Impeller

Quantity 2
Diameter 14"
Style Folding
Bore 3/4"
Rotation Left Hand
Material Construction 304 Stainless Steel
Blade Construction Laser Cut
Set Screw 2

Mount

Adjustable 34" up to 48"
Construction Steel
Features Adjustable Toggle Clamps

Shaft

Exposed Dimensions 3/4" x 36"
Construction 316 Stainless Steel

$3,446.50
Approx. Lead Time
2 Business Days
* Orders in quantity or with other items may extend lead times.
