1/2 HP Electric Explosion Proof Gear Drive IBC Tote Mixer Deluxe Adjustable Bracket
Model Number: BGTC-050E
Part Number: 21A5348

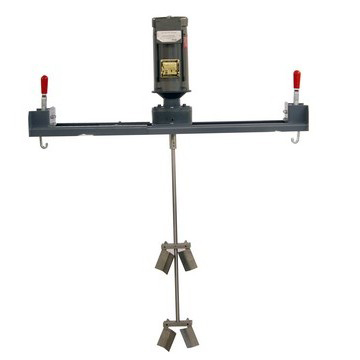

INDCO's Deluxe IBC Tote Mixer offers enhanced features for operational efficiency and ergonomics. The toggle feature hooks directly to various cage sizes reducing installation and changeover times. A lifting eye option is also available to maneuver your mixer. This gear reduced model runs 230 RPM and provides the torque necessary for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. The 1/2 HP electric motor model is equipped with motor leads only. This explosion proof motor requires single phase 115/230 voltage. The 36" long mixing shaft attaches to a coupler and two 12" collapsible impellers with set screws. The impellers are designed to enter 6" tote openings and open to 12" when in operation. The expandable bracket mount fits totes between 34" and 48" wide. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5004A |
| Boston Model or Equivalent | HF718R-7.5Z-B5-H-P12 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 7.4:3.9-3.7 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 7.5:1 |
| Gearbox Design | Right Angle |
Impeller
| Quantity | 2 |
| Diameter | 10" |
| Style | Folding |
| Bore | 3/4" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Adjustable Toggle Clamps |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: BGTC-050E
INDCO's Deluxe IBC Tote Mixer offers enhanced features for operational efficiency and ergonomics. The toggle feature hooks directly to various cage sizes reducing installation and changeover times. A lifting eye option is also available to maneuver your mixer. This gear reduced model runs 230 RPM and provides the torque necessary for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. The 1/2 HP electric motor model is equipped with motor leads only. This explosion proof motor requires single phase 115/230 voltage. The 36" long mixing shaft attaches to a coupler and two 12" collapsible impellers with set screws. The impellers are designed to enter 6" tote openings and open to 12" when in operation. The expandable bracket mount fits totes between 34" and 48" wide. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5004A |
| Boston Model or Equivalent | HF718R-7.5Z-B5-H-P12 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 7.4:3.9-3.7 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 7.5:1 |
| Gearbox Design | Right Angle |
Impeller
| Quantity | 2 |
| Diameter | 10" |
| Style | Folding |
| Bore | 3/4" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Adjustable Toggle Clamps |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
