1/2 HP Variable Speed Electric Gear Drive IBC Tote Mixer Adjustable Bracket
Model Number: BGF-050V
Part Number: 21A5002

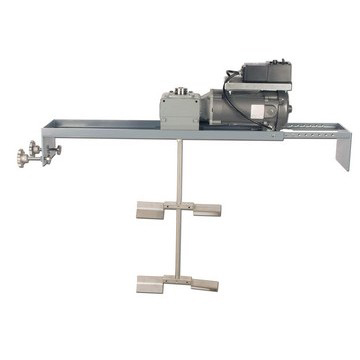

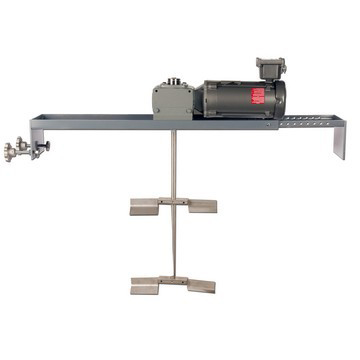

The BGF Series is our gear reduced version of the IBC tote bracket mixer. It is ideal for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. This 1/2 HP electric motor is ready to plug into a standard outlet. The totally-enclosed non-ventilated motor requires single phase 115/230 voltage. The gear reduction delivers 0-230 RPM at higher torque than a direct drive mixer. The low-profile configuration allows operation in areas with low overhead clearance. The 36" long mixing shaft attaches to a coupler and two 10" collapsible impellers with set screws. The impellers are designed to enter 6" tote openings and open to 10" when in operation. This bracket mount fits totes between 34" and 48" wide. The variable speed provides the user with precise control of agitation levels. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
Horsepower | 1/2 |
Motor Enclosure | Totally Enclosed Non Ventilated |
MotorRPM | 1750 |
Motor Type | Electric |
Baldor Model or Equivalent | CDP3330 |
Boston Model or Equivalent | HF718R-7.5Z-B5-H-P12 |
Motor Frame | 56C Face |
Motor Exterior | Painted |
Rotation Top | Wired Clockwise |
Phase | Single |
Voltage | 90 |
Hertz | 60 |
InsulationClass | F |
Drive | Gear Reduced |
Gearbox Ratio | 7.5:1 |
Gearbox Design | Right Angle |
Impeller
Quantity | 2 |
Diameter | 10" |
Style | Folding |
Bore | 3/4" |
Rotation | Left Hand |
Material Construction | 304 Stainless Steel |
Blade Construction | Laser Cut |
Set Screw | 2 |
Mount
Adjustable | 34" up to 48" |
Construction | Steel |
Features | Two Hand Knobs |
Shaft
Exposed Dimensions | 3/4" x 36" |
Construction | 316 Stainless Steel |
General
Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
Shipping Carrier | Small Parcel |
FOB | New Albany, IN |
Model Number: BGF-050V
The BGF Series is our gear reduced version of the IBC tote bracket mixer. It is ideal for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. This 1/2 HP electric motor is ready to plug into a standard outlet. The totally-enclosed non-ventilated motor requires single phase 115/230 voltage. The gear reduction delivers 0-230 RPM at higher torque than a direct drive mixer. The low-profile configuration allows operation in areas with low overhead clearance. The 36" long mixing shaft attaches to a coupler and two 10" collapsible impellers with set screws. The impellers are designed to enter 6" tote openings and open to 10" when in operation. This bracket mount fits totes between 34" and 48" wide. The variable speed provides the user with precise control of agitation levels. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
Horsepower | 1/2 |
Motor Enclosure | Totally Enclosed Non Ventilated |
MotorRPM | 1750 |
Motor Type | Electric |
Baldor Model or Equivalent | CDP3330 |
Boston Model or Equivalent | HF718R-7.5Z-B5-H-P12 |
Motor Frame | 56C Face |
Motor Exterior | Painted |
Rotation Top | Wired Clockwise |
Phase | Single |
Voltage | 90 |
Hertz | 60 |
InsulationClass | F |
Drive | Gear Reduced |
Gearbox Ratio | 7.5:1 |
Gearbox Design | Right Angle |
Impeller
Quantity | 2 |
Diameter | 10" |
Style | Folding |
Bore | 3/4" |
Rotation | Left Hand |
Material Construction | 304 Stainless Steel |
Blade Construction | Laser Cut |
Set Screw | 2 |
Mount
Adjustable | 34" up to 48" |
Construction | Steel |
Features | Two Hand Knobs |
Shaft
Exposed Dimensions | 3/4" x 36" |
Construction | 316 Stainless Steel |
General
Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
Shipping Carrier | Small Parcel |
FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
