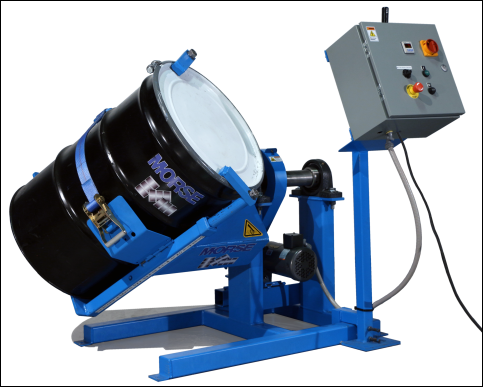

Corner-Over-Corner EP Drum Tumbler

Corner-Over-Corner EP Drum Tumbler Image

Model Number: 309-E3-CP

Part Number: 22S1068

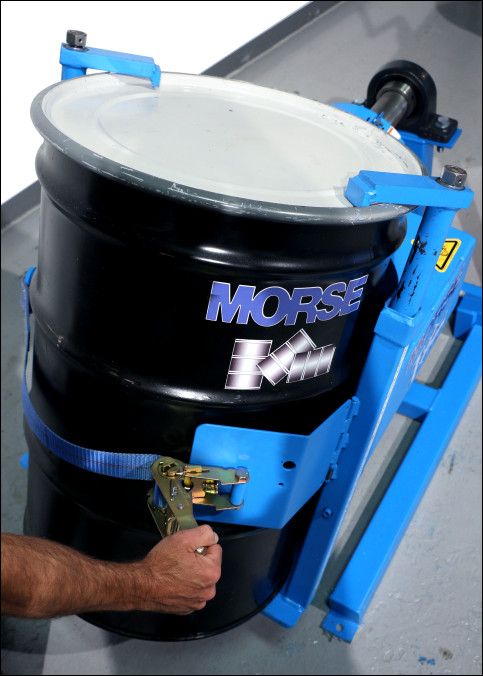

Rotate a plastic, steel or fiber 55 gallon or 30 gallon drum.  Open the hinged ratchet plate and two top clamps, then load the drum into the tumbler.  Secure the drum using the web strap and ratchet around the drum and tighten the two top clamps.  Turn the motor on to begin tumbling.  This electric model is rated explosion proof 3 phase, 230V and 60 Htz.  EP explosion proof models have NO wiring from control box to motor.  The drum RPM is 14.  Unit accepts containers from 29" to 37" tall and 18" to 23.5" in diameter.  Load capacity is 800 lbs in a full drum or a max of 400 lbs in a half drum.



Enclosures with safety interlock to meet OSHA requirements are NOT included - available by quote.

Model Number: 309-E3-CP

Rotate a plastic, steel or fiber 55 gallon or 30 gallon drum.  Open the hinged ratchet plate and two top clamps, then load the drum into the tumbler.  Secure the drum using the web strap and ratchet around the drum and tighten the two top clamps.  Turn the motor on to begin tumbling.  This electric model is rated explosion proof 3 phase, 230V and 60 Htz.  EP explosion proof models have NO wiring from control box to motor.  The drum RPM is 14.  Unit accepts containers from 29" to 37" tall and 18" to 23.5" in diameter.  Load capacity is 800 lbs in a full drum or a max of 400 lbs in a half drum.



Enclosures with safety interlock to meet OSHA requirements are NOT included - available by quote.


$9,680.00
Approx. Lead Time
60 Business Days
* Orders in quantity or with other items may extend lead times.
