55-Gallon 120V Thermostat Controlled Drum Heater - High Range

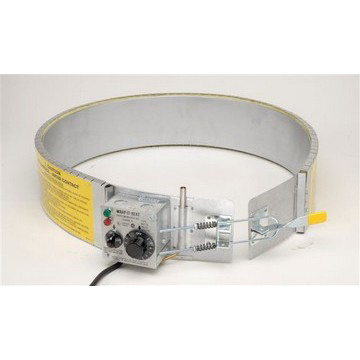

55-Gallon 120V Thermostat Controlled Drum Heater - High Range Image

Model Number: TRX-55H

Part Number: 22G1410

Thermostat-controlled electric drum heaters put process control in your hands. Whether it is to reduce viscosity for ease of mixing or simply to reach a target product temperature, we have the heater for your application. This 120-volt model, sized for standard 22-1/2" diameter 55-gallon drums, has a temperature range of 200°F to 400°F. It provides 1920 watts and draws 16 amps at its highest setting while additional one-half and one-quarter power settings offer flexibility. These heaters fit snugly to the drum with spring-loaded toggle clamps and are designed for indoor use only. They are supplied with a 6-foot power cord and 3-pin plug. The unit requires a Hubbel outlet receptacle. See our optional drum heater drip guard, model DH-DG-55, for added protection from splash or spills.  Model cannot be used on plastic, plastic lined or fiber drums.

Model Number: TRX-55H

Thermostat-controlled electric drum heaters put process control in your hands. Whether it is to reduce viscosity for ease of mixing or simply to reach a target product temperature, we have the heater for your application. This 120-volt model, sized for standard 22-1/2" diameter 55-gallon drums, has a temperature range of 200°F to 400°F. It provides 1920 watts and draws 16 amps at its highest setting while additional one-half and one-quarter power settings offer flexibility. These heaters fit snugly to the drum with spring-loaded toggle clamps and are designed for indoor use only. They are supplied with a 6-foot power cord and 3-pin plug. The unit requires a Hubbel outlet receptacle. See our optional drum heater drip guard, model DH-DG-55, for added protection from splash or spills.  Model cannot be used on plastic, plastic lined or fiber drums.


$390.00
Approx. Lead Time
3 Business Days
* Orders in quantity or with other items may extend lead times.
