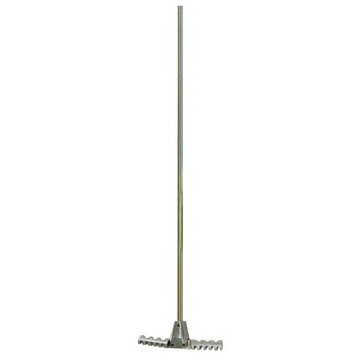

5" T-Style Mixer with 23" Shaft
Model Number: TMS-5
Part Number: 22C1164
The T-style mixers are specifically designed to loosen settled materials from the bottom of a container. The TMS-5 model consists of (1) 5" dia. impeller on a 3/8" x 23" shaft and can be used to mix up to 5 gallons. The T design collapses to fit into a 2" drum bung hole and opens when in rotation. The shaft is zinc-plated steel and the mixing heads are die-cast aluminum alloy.
Model Number: TMS-5
The T-style mixers are specifically designed to loosen settled materials from the bottom of a container. The TMS-5 model consists of (1) 5" dia. impeller on a 3/8" x 23" shaft and can be used to mix up to 5 gallons. The T design collapses to fit into a 2" drum bung hole and opens when in rotation. The shaft is zinc-plated steel and the mixing heads are die-cast aluminum alloy.
Impeller
| Quantity | 1 |
| Diameter | 5" |
| Style | T-Style |
| Material Construction | Zinc-Aluminum Alloy |
| Blade Construction | Die-Cast |
Shaft
| Exposed Dimensions | 3/8" x 23" |
| Construction | Zinc-Plated Steel |
General
| Warranty | Manufacturer's Warranty |
| Weight | 1 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
1 Business Days * * If ordered before noon EST will ship same day. Orders in quantity or with other items may extend lead times.
