7-1/2 HP Electric Gear Drive Top Entry Mixer with Hydrofoil

7-1/2 HP Electric Gear Drive Top Entry Mixer with Hydrofoil Image

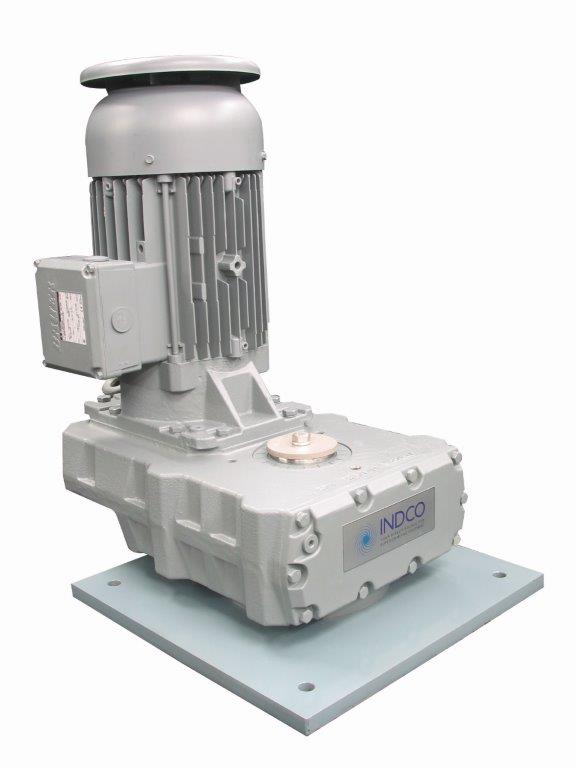

7-1/2 HP Electric Gear Drive Top Entry Mixer with Hydrofoil - image 1

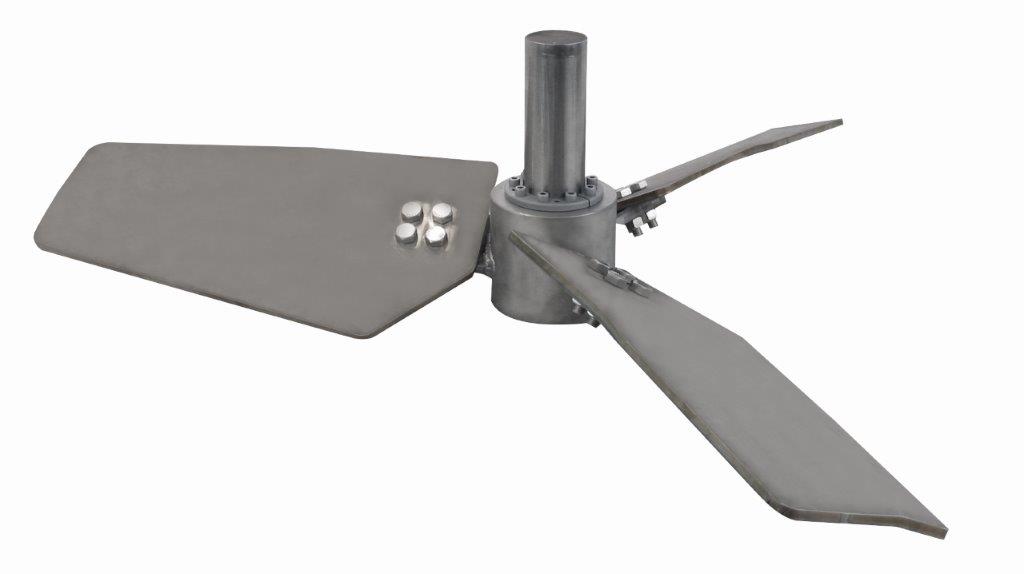

7-1/2 HP Electric Gear Drive Top Entry Mixer with Hydrofoil - image 2

Model Number: TM-750

Part Number: 21Q2514

Gear-driven top mount mixers are the backbone of large scale liquid processing and production in industries such as waste water, chemicals, paint & coatings, petroleum and many more.  The 7 1/2 HP INDCO TM-750 mixer mounts to a support structure or mounting surface above the tank via four bolts and features a parallel helical gear drive with 24:1 gear ratio for quiet operation with maximum efficiency.   The 2" X 108” long 316 stainless steel shaft rotates 74 rpm.  The standard 42” hydrofoil impeller is secured to the shaft using set screws and keyway with gib key to prevent rotational and vertical movement.  The mixer requires 230/460 Volt three phase power.  This mixer is ideal for batch production or continuous processes in tank volumes up to 7,500 gallons.  All wetted parts are 316 SS standard for chemical resistance.  Customizations include gear ratio, shaft length, alternate impeller options, and variable speed control.  Hastelloy C and other alloys are available as needed for wetted parts.  Contact our engineers to assist with sizing and configuring the mixer to your application.

Motor

Impeller

Mount

Shaft

General

Model Number: TM-750

Gear-driven top mount mixers are the backbone of large scale liquid processing and production in industries such as waste water, chemicals, paint & coatings, petroleum and many more.  The 7 1/2 HP INDCO TM-750 mixer mounts to a support structure or mounting surface above the tank via four bolts and features a parallel helical gear drive with 24:1 gear ratio for quiet operation with maximum efficiency.   The 2" X 108” long 316 stainless steel shaft rotates 74 rpm.  The standard 42” hydrofoil impeller is secured to the shaft using set screws and keyway with gib key to prevent rotational and vertical movement.  The mixer requires 230/460 Volt three phase power.  This mixer is ideal for batch production or continuous processes in tank volumes up to 7,500 gallons.  All wetted parts are 316 SS standard for chemical resistance.  Customizations include gear ratio, shaft length, alternate impeller options, and variable speed control.  Hastelloy C and other alloys are available as needed for wetted parts.  Contact our engineers to assist with sizing and configuring the mixer to your application.

Motor

Impeller

Mount

Shaft

General


$8,438.50
Approx. Lead Time
20 Business Days
* Orders in quantity or with other items may extend lead times.
