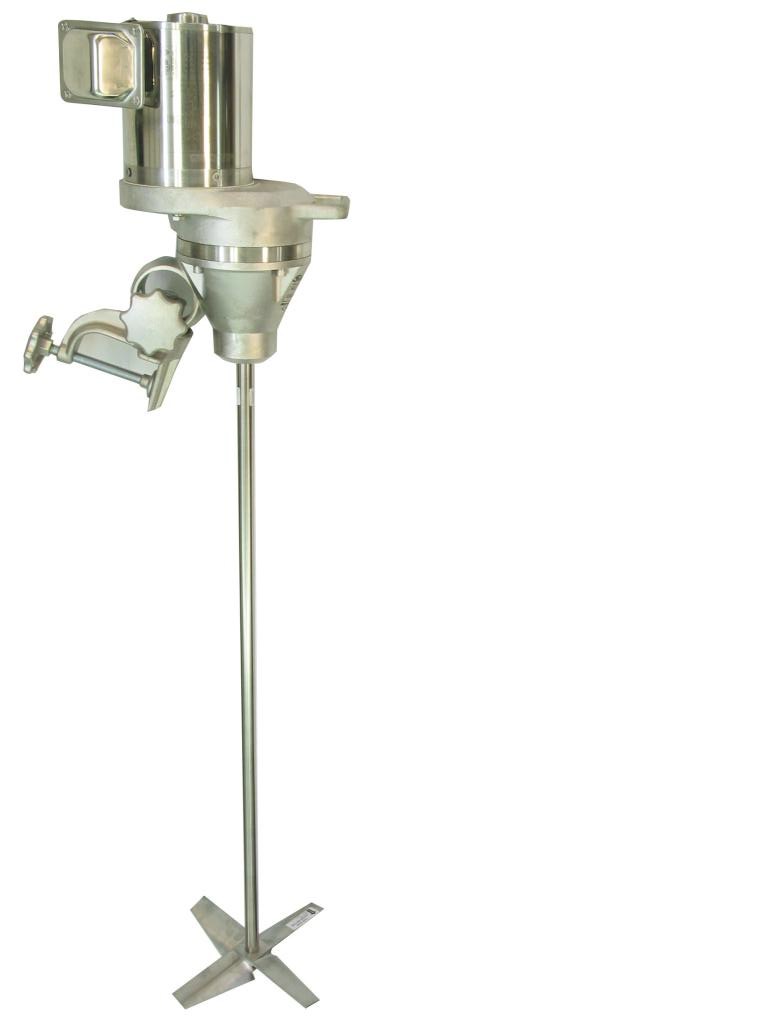

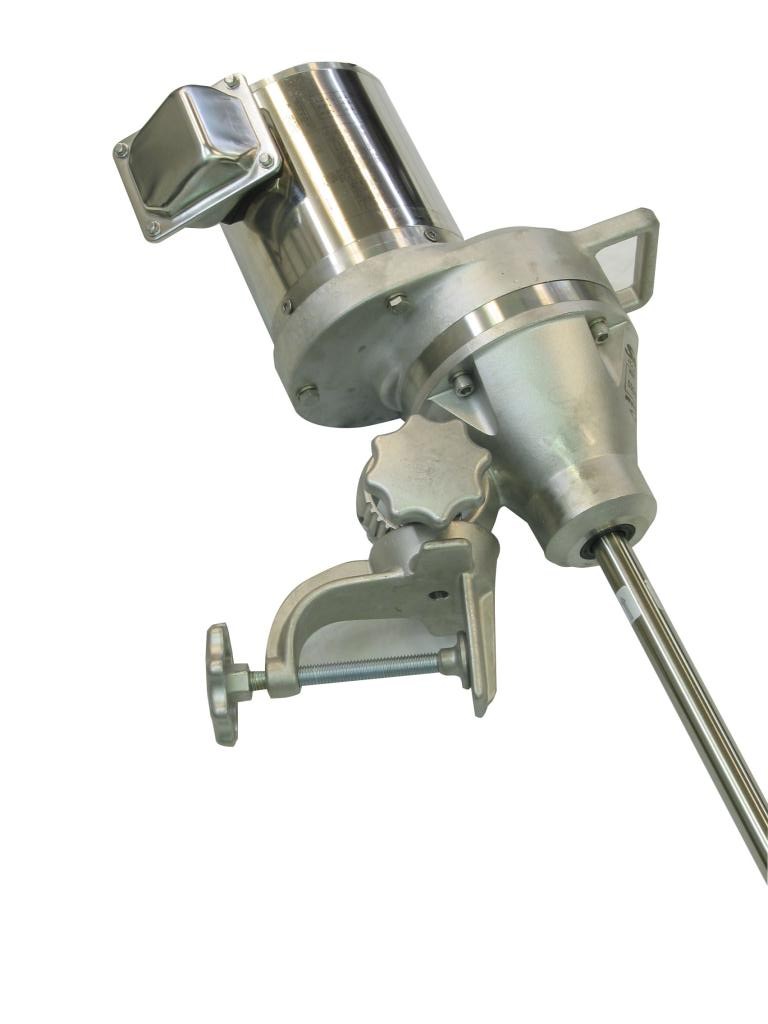

Clamp Mount 1/2 HP Gear Drive Electric Stainless Steel Sanitary Mixer

Clamp Mount 1/2 HP Gear Drive Electric Stainless Steel Sanitary Mixer Image
Clamp Mount 1/2 HP Gear Drive Electric Stainless Steel Sanitary Mixer Image

Model Number: SM-DSG50

Part Number: 22A1032

INDCO's sanitary portable clamp mount mixers are excellent for pharmaceutical, food, cosmetic or dairy applications where CIP or washdown capability is required.  Thisdeluxe model includes a stainless steel finish in addition to the 316 stainless steel shaft and impellers and can be regularly exposed to high-pressure cleaning and detergents. This model appears on the USDA list of accepted equipment in food-processing plants.
The SM-DSG50 is a 5:1 gear drive 1/2 HP electric unit.  The totally enclosed fan cooled motor requires three phase 230/460 voltage and is equipped with motor leads only.  The 13" hydrofoil is polished to a #4 150 grit finish and is attached to the 45" long shaft with set screws or can be welded seamlessly to the shaft by quote.  The mount assembly houses a supporting bearing for shaft stability and reduces wear on the motor shaft.  The support bearing and internal parts are protected by a heavy-duty seal.  The deluxe "C" clamp assembly allows for vertical and horizontal adjustments for most efficient mixer positioning.  Many motor options, variable speed drives and additional customizations are available upon request through our engineering department.  Material certification packages are also available and should be requested if required at the time of purchase.

Motor

Horsepower 1/2
Motor Enclosure Totally Enclosed Fan Cooled
MotorRPM 350
Motor Type Electric
Motor Exterior Stainless Steel
Rotation Top Wired Clockwise
Hertz 60
ServiceFactor 1.00
Drive Gear Reduced
Gearbox Type F

Impeller

Quantity 1
Diameter 13"
Style 4-Blade Hydrofoil
Bore 3/4"
Rotation Left Hand
Material Construction 316 Stainless Steel
Blade Construction Welded
Set Screw 2

Mount

Adjustable Horizontal and Vertical Adjustments
Construction 300 Series Stainless Steel

TankLinerSpec

Diameter 13"

Shaft

Exposed Dimensions 3/4" x 45"
Construction 316 Stainless Steel

Model Number: SM-DSG50

INDCO's sanitary portable clamp mount mixers are excellent for pharmaceutical, food, cosmetic or dairy applications where CIP or washdown capability is required.  Thisdeluxe model includes a stainless steel finish in addition to the 316 stainless steel shaft and impellers and can be regularly exposed to high-pressure cleaning and detergents. This model appears on the USDA list of accepted equipment in food-processing plants.
The SM-DSG50 is a 5:1 gear drive 1/2 HP electric unit.  The totally enclosed fan cooled motor requires three phase 230/460 voltage and is equipped with motor leads only.  The 13" hydrofoil is polished to a #4 150 grit finish and is attached to the 45" long shaft with set screws or can be welded seamlessly to the shaft by quote.  The mount assembly houses a supporting bearing for shaft stability and reduces wear on the motor shaft.  The support bearing and internal parts are protected by a heavy-duty seal.  The deluxe "C" clamp assembly allows for vertical and horizontal adjustments for most efficient mixer positioning.  Many motor options, variable speed drives and additional customizations are available upon request through our engineering department.  Material certification packages are also available and should be requested if required at the time of purchase.

Motor

Horsepower 1/2
Motor Enclosure Totally Enclosed Fan Cooled
MotorRPM 350
Motor Type Electric
Motor Exterior Stainless Steel
Rotation Top Wired Clockwise
Hertz 60
ServiceFactor 1.00
Drive Gear Reduced
Gearbox Type F

Impeller

Quantity 1
Diameter 13"
Style 4-Blade Hydrofoil
Bore 3/4"
Rotation Left Hand
Material Construction 316 Stainless Steel
Blade Construction Welded
Set Screw 2

Mount

Adjustable Horizontal and Vertical Adjustments
Construction 300 Series Stainless Steel

TankLinerSpec

Diameter 13"

Shaft

Exposed Dimensions 3/4" x 45"
Construction 316 Stainless Steel

$4,480.50
Approx. Lead Time
40 Business Days
* Orders in quantity or with other items may extend lead times.
