Winch Lift Style Mixer Mounting Stand with Floor Mount Plate for IBC Totes

Winch Lift Style Mixer Mounting Stand with Floor Mount Plate for IBC Totes Image
Winch Lift Style Mixer Mounting Stand with Floor Mount Plate for IBC Totes Image

Model Number: PSW-BT-BP

Part Number: 21B1031

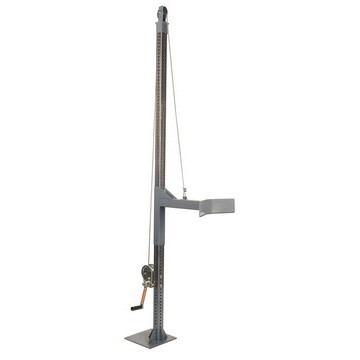

INDCO's heavy-duty extended arm mixer mounting stands are designed to work with all of INDCO's c-clamp mount mixers. All units are ruggedly constructed from heavy-gauge plate steel and square tubing. The mixer mounting arm extends out 18" from upright to accommodate drums or IBC totes. The mixer mounting plate extends horizontally 7-3/4" from angle at arm and is 4" high. This stationary model is designed with a 12" square steel mounting base with four 9/16" mounting holes for permanent floor attachment. 1/2" anchor bolts are required to mount the stand but are not included.
The winch lift model features a hand-operated which that raises and lowers the stand with a cable and pulley and includes a self-activating brake that will hold the mixer at desired height when handle is released. The minimum height of the mixer mounting plate is 36" and the maximum height is 94". All mixers are sold separately.

Mount

Adjustable "Minimum Height 36""

Model Number: PSW-BT-BP

INDCO's heavy-duty extended arm mixer mounting stands are designed to work with all of INDCO's c-clamp mount mixers. All units are ruggedly constructed from heavy-gauge plate steel and square tubing. The mixer mounting arm extends out 18" from upright to accommodate drums or IBC totes. The mixer mounting plate extends horizontally 7-3/4" from angle at arm and is 4" high. This stationary model is designed with a 12" square steel mounting base with four 9/16" mounting holes for permanent floor attachment. 1/2" anchor bolts are required to mount the stand but are not included.
The winch lift model features a hand-operated which that raises and lowers the stand with a cable and pulley and includes a self-activating brake that will hold the mixer at desired height when handle is released. The minimum height of the mixer mounting plate is 36" and the maximum height is 94". All mixers are sold separately.

Mount

Adjustable "Minimum Height 36""

$1,098.00
Approx. Lead Time
5 Business Days
* Orders in quantity or with other items may extend lead times.
Add To Cart
