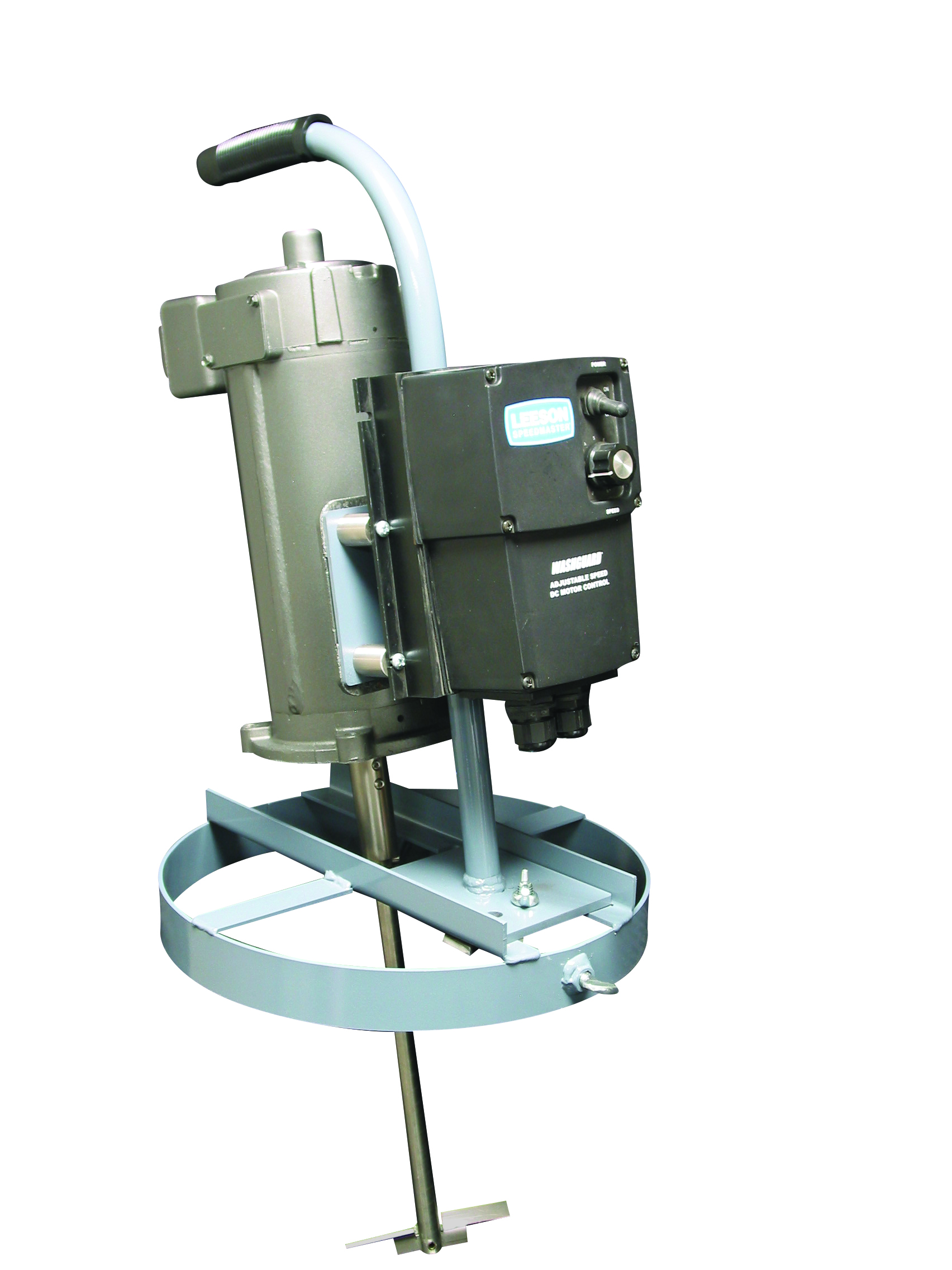

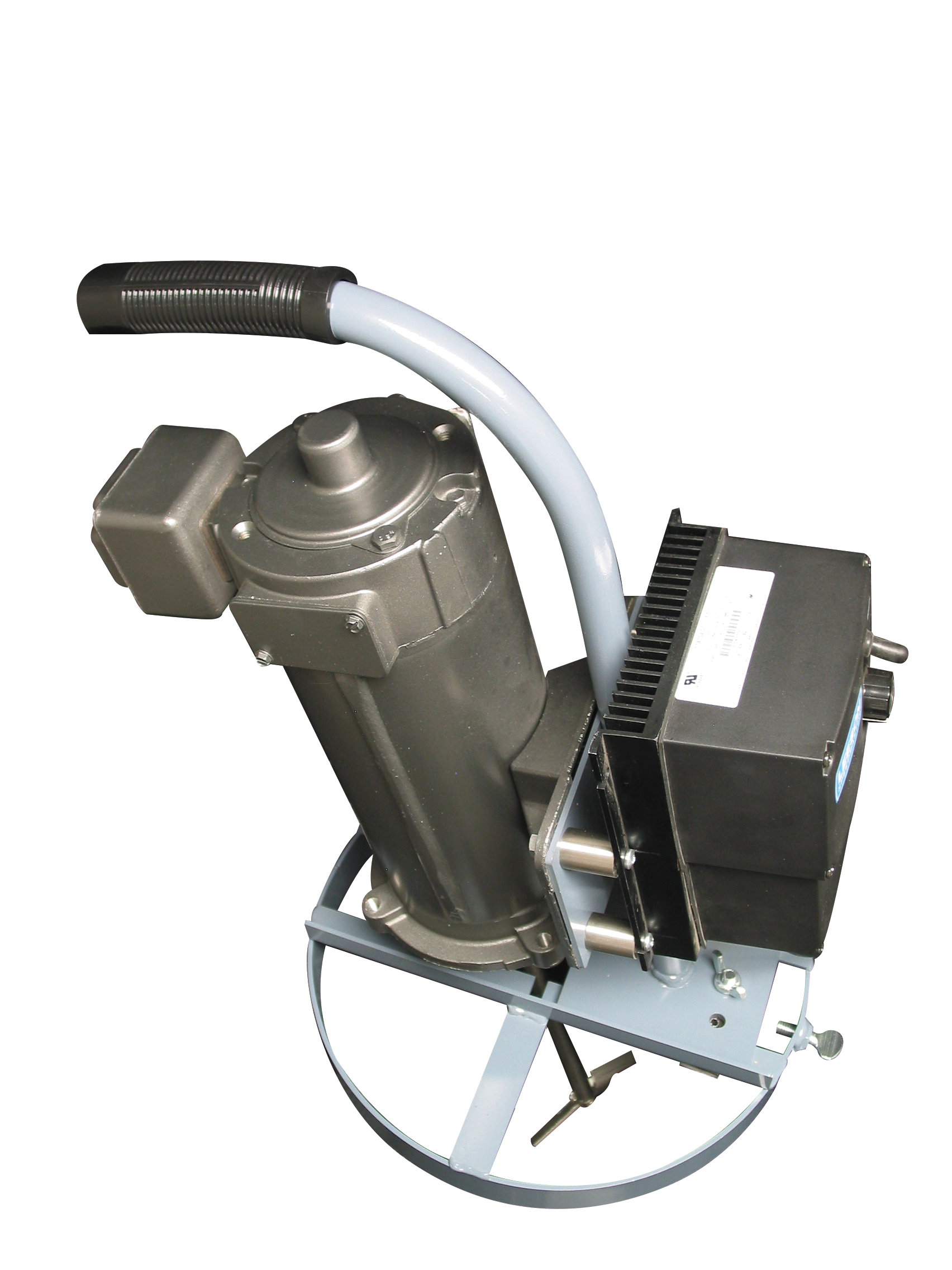

1/2 HP Electric Direct Drive Variable Speed Quic Ring Mount Mixer
Model Number: MVS-Q
Part Number: 21N5040
INDCO's Quic Mixers are a portable and lightweight option for mixing 5-gallon pails with an open top or through a 1-1/2" bung utilizing the folding impeller design. The 12-1/4" ID ring mount sits on the pail and provides a low center of gravity for steady, worry free mixing. The adjustable center channel design allows the mixer to slide for positioning and locks in place. The quick-change coupler and shaft design features a shaft pin that locks in place during rotation. The quic mixer is ideal for blending colorants into paint, remixing settled material or adding powders. The MVS-Q model includes a 1/2 HP electric totally enclosed non-ventilated TENV proof motor that requires single phase 115 voltage. This model is ready to plug into a standard outlet. The variable speed control provides 35-1750 RPM for mixing medium viscosity materials. This unit has a 4-1/2" diameter folding impeller on a 12" long shaft. All wetted parts are 300 series stainless steel for chemical resistance. This electric model features a Baldor or an equivalent brand motor.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | TENV |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3330 |
| Motor Frame | 56C |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| Hertz | 60 |
| InsulationClass | F |
| Drive | Direct Impeller |
Mount
| Adjustable | Mixer Position is Adjustable |
| Construction | Steel |
| Features | 5 Gallon Ring Mount |
Shaft
| Exposed Dimensions | 5/8" x 12" |
| Construction | Stainless Steel Shaft |
| Shaft Diameter | 5/8" |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 52 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: MVS-Q
INDCO's Quic Mixers are a portable and lightweight option for mixing 5-gallon pails with an open top or through a 1-1/2" bung utilizing the folding impeller design. The 12-1/4" ID ring mount sits on the pail and provides a low center of gravity for steady, worry free mixing. The adjustable center channel design allows the mixer to slide for positioning and locks in place. The quick-change coupler and shaft design features a shaft pin that locks in place during rotation. The quic mixer is ideal for blending colorants into paint, remixing settled material or adding powders. The MVS-Q model includes a 1/2 HP electric totally enclosed non-ventilated TENV proof motor that requires single phase 115 voltage. This model is ready to plug into a standard outlet. The variable speed control provides 35-1750 RPM for mixing medium viscosity materials. This unit has a 4-1/2" diameter folding impeller on a 12" long shaft. All wetted parts are 300 series stainless steel for chemical resistance. This electric model features a Baldor or an equivalent brand motor.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | TENV |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3330 |
| Motor Frame | 56C |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| Hertz | 60 |
| InsulationClass | F |
| Drive | Direct Impeller |
Mount
| Adjustable | Mixer Position is Adjustable |
| Construction | Steel |
| Features | 5 Gallon Ring Mount |
Shaft
| Exposed Dimensions | 5/8" x 12" |
| Construction | Stainless Steel Shaft |
| Shaft Diameter | 5/8" |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 52 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
