1/2 HP Explosion Proof Electric Direct Drive Quic Ring Mount Mixer
Model Number: MEP-1Q
Part Number: 21N5038

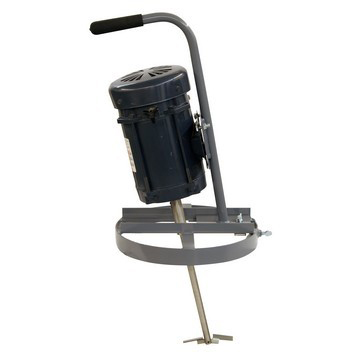

INDCO's Quic Mixers are a portable and lightweight option for mixing 5-gallon pails with an open top or through a 1-1/2" bung utilizing the folding impeller design. The 12-1/4" ID ring mount sits on the pail and provides a low center of gravity for steady, worry free mixing. The adjustable center channel design allows the mixer to slide for positioning and locks in place. The quick-change coupler and shaft design features a shaft pin that locks in place during rotation. The quic mixer is ideal for blending colorants into paint, remixing settled material or adding powders.
The MEP-1Q model is a 1/2 HP electric explosion proof motor and requires single phase 115/230 voltage. The explosion proof motor has motor leads only (no cord/plug). The motor operates at 1750 RPM for mixing medium viscosity. This unit has a 4-1/2" diameter folding impeller on a 12" long shaft. All wetted parts are 300 series stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1/2 - 1/3 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CL5004A |
| Motor Frame | 56 |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115 |
| Hertz | 60 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Direct |
Impeller
| Quantity | 1 |
| Diameter | 4-1/2" |
| Style | MSF-Q |
| Rotation | Left Hand |
| Material Construction | Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | Pin |
Mount
| Adjustable | Mixer Position is Adjustable |
| Construction | Steel |
| Features | 5 Gallon Ring Mount |
TankLinerSpec
| Diameter | 4-1/2" |
Shaft
| Exposed Dimensions | 5/8" x 18" |
| Construction | Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 37 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: MEP-1Q
INDCO's Quic Mixers are a portable and lightweight option for mixing 5-gallon pails with an open top or through a 1-1/2" bung utilizing the folding impeller design. The 12-1/4" ID ring mount sits on the pail and provides a low center of gravity for steady, worry free mixing. The adjustable center channel design allows the mixer to slide for positioning and locks in place. The quick-change coupler and shaft design features a shaft pin that locks in place during rotation. The quic mixer is ideal for blending colorants into paint, remixing settled material or adding powders.
The MEP-1Q model is a 1/2 HP electric explosion proof motor and requires single phase 115/230 voltage. The explosion proof motor has motor leads only (no cord/plug). The motor operates at 1750 RPM for mixing medium viscosity. This unit has a 4-1/2" diameter folding impeller on a 12" long shaft. All wetted parts are 300 series stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1/2 - 1/3 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CL5004A |
| Motor Frame | 56 |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115 |
| Hertz | 60 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Direct |
Impeller
| Quantity | 1 |
| Diameter | 4-1/2" |
| Style | MSF-Q |
| Rotation | Left Hand |
| Material Construction | Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | Pin |
Mount
| Adjustable | Mixer Position is Adjustable |
| Construction | Steel |
| Features | 5 Gallon Ring Mount |
TankLinerSpec
| Diameter | 4-1/2" |
Shaft
| Exposed Dimensions | 5/8" x 18" |
| Construction | Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 37 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
