1/2 HP Variable Speed Electric Heavy Duty Pail Scraper Style Mixer

1/2 HP Variable Speed Electric Heavy Duty Pail Scraper Style Mixer Image
1/2 HP Variable Speed Electric Heavy Duty Pail Scraper Style Mixer Image

Model Number: M-2000V

Part Number: 21N5004

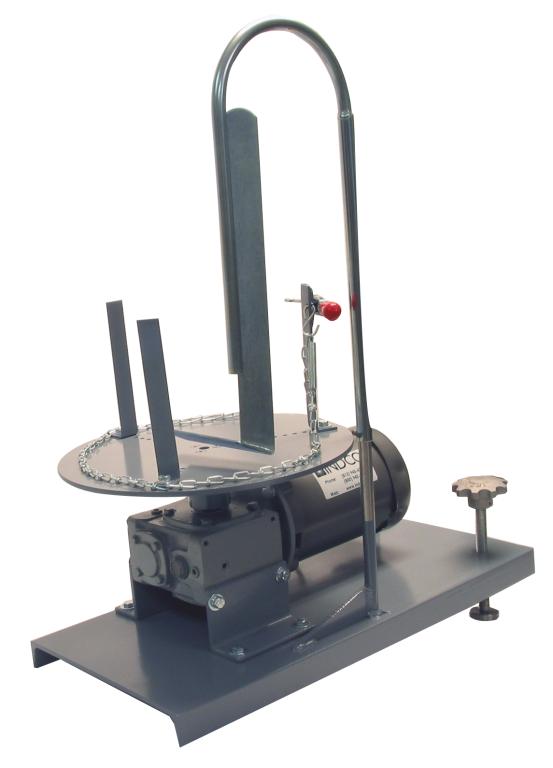

The turntable style tabletop mixer rotates a 1- to 5- gallon pail while mixing with a stationary paddle that scrapes the side and bottom providing a radial and axial action. The adjustable legs offer mixing angles from 1-15 degrees. The paddle is zinc-plated carbon steel. The 1/2 HP totally-enclosed non ventilated electric motor requires 115 volt, 1 phase 60 Hz. This unit is ready to plug into a standard outlet. The variable speed control operates the unit from 0-60 RPM. This electric model features an ABB or an equivalent brand motor. The unit is shipped fully assembled. (Pails are not included.)  This item must ship via an LTL carrier.

Motor

Horsepower 1/2
Motor Enclosure Totally Enclosed Non Ventilated
MotorRPM 1750
Motor Type Electric
Baldor Model or Equivalent CDP3330
Boston Model or Equivalent IC45-30:1-2L-56C
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Wired Clockwise
Phase Single
Voltage 115
Hertz 60
InsulationClass F
Drive Gear Reduced
Gearbox Ratio 30:1
Gearbox Design Right Angle

Impeller

Quantity 1
Style Scraper
Material Construction Zinc Plated Carbon Steel
Blade Construction Welded

Mount

Adjustable 0 - 15° Angle
Construction Steel

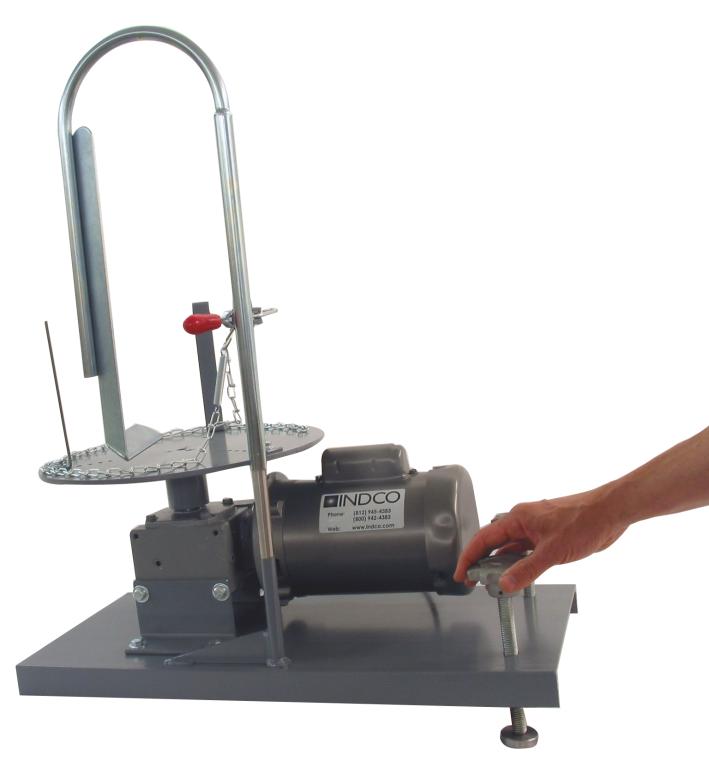

Features 2 Hand Knobs Adjust Base

Shaft

Construction Zinc Plated Carbon Steel

Model Number: M-2000V

The turntable style tabletop mixer rotates a 1- to 5- gallon pail while mixing with a stationary paddle that scrapes the side and bottom providing a radial and axial action. The adjustable legs offer mixing angles from 1-15 degrees. The paddle is zinc-plated carbon steel. The 1/2 HP totally-enclosed non ventilated electric motor requires 115 volt, 1 phase 60 Hz. This unit is ready to plug into a standard outlet. The variable speed control operates the unit from 0-60 RPM. This electric model features an ABB or an equivalent brand motor. The unit is shipped fully assembled. (Pails are not included.)  This item must ship via an LTL carrier.

Motor

Horsepower 1/2
Motor Enclosure Totally Enclosed Non Ventilated
MotorRPM 1750
Motor Type Electric
Baldor Model or Equivalent CDP3330
Boston Model or Equivalent IC45-30:1-2L-56C
Motor Frame 56C Face
Motor Exterior Painted
Rotation Top Wired Clockwise
Phase Single
Voltage 115
Hertz 60
InsulationClass F
Drive Gear Reduced
Gearbox Ratio 30:1
Gearbox Design Right Angle

Impeller

Quantity 1
Style Scraper
Material Construction Zinc Plated Carbon Steel
Blade Construction Welded

Mount

Adjustable 0 - 15° Angle
Construction Steel
Features 2 Hand Knobs Adjust Base

Shaft

Construction Zinc Plated Carbon Steel

$2,395.00
Approx. Lead Time
5 Business Days
