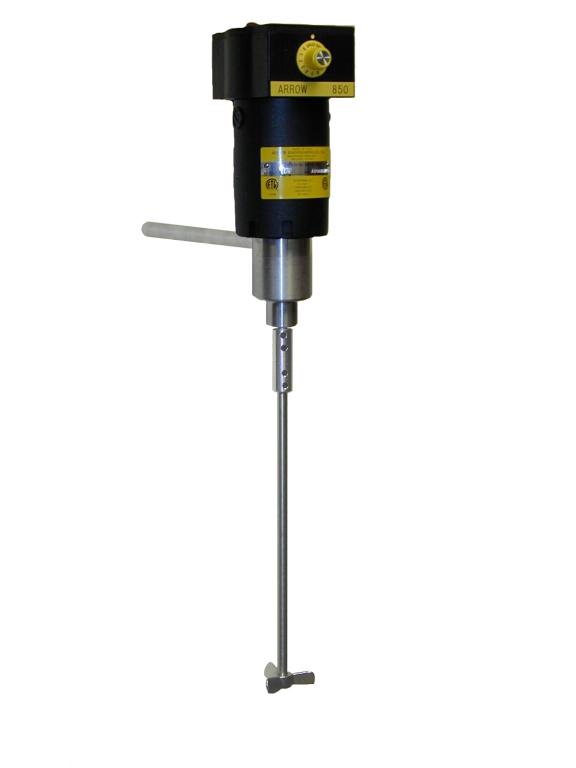

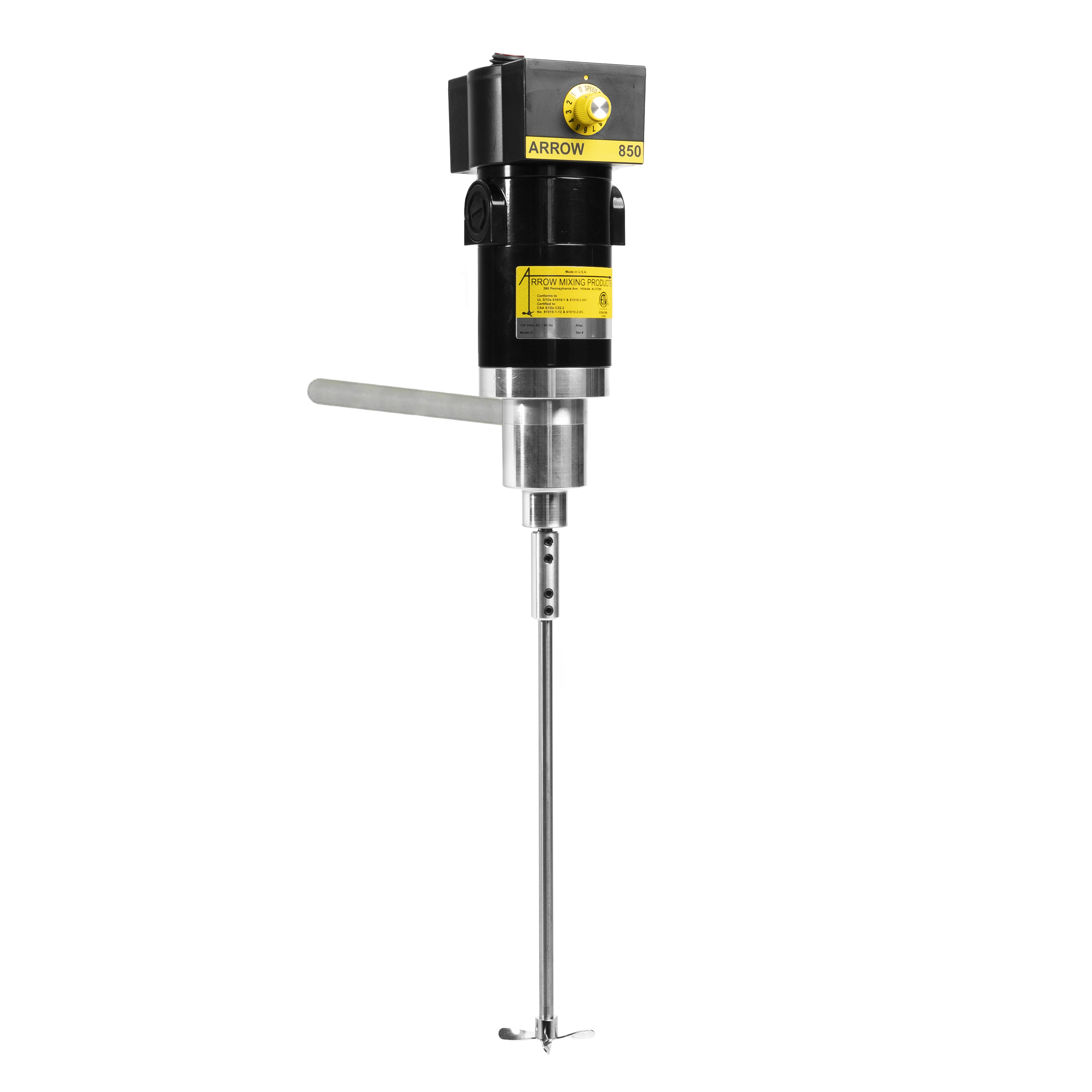

1/10 HP Gear Drive Electric Stirrer
Model Number: ES850
Part Number: 22J2064
The ES850 electric stirrer operates with manual speed control from 0-850 RPM on an integral gear drive motor / controller unit. Rated for medium to heavy duty, this 1/10 HP 115V, 60 Hz unit has a maximum torque load of 7.4 in-lbs. This model comes complete with a 12" shaft, 2-1/2" propeller and a 9/16" x 10" mounting rod and is ideal for agitating light liquids in batch sizes up to 100 liters. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.
Model Number: ES850
The ES850 electric stirrer operates with manual speed control from 0-850 RPM on an integral gear drive motor / controller unit. Rated for medium to heavy duty, this 1/10 HP 115V, 60 Hz unit has a maximum torque load of 7.4 in-lbs. This model comes complete with a 12" shaft, 2-1/2" propeller and a 9/16" x 10" mounting rod and is ideal for agitating light liquids in batch sizes up to 100 liters. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.
Motor
| Horsepower | 1/10 |
| Motor Type | Electric |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60/50 |
| Gearbox Ratio | 7:1 |
Shaft
| Exposed Dimensions | 3/8" x 12" |
| Construction | Stainless Steel |
General
| Warranty | Manufacturer's Warranty |
| Weight | 10 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
1 Business Days * * If ordered before noon EST will ship same day. Orders in quantity or with other items may extend lead times.
