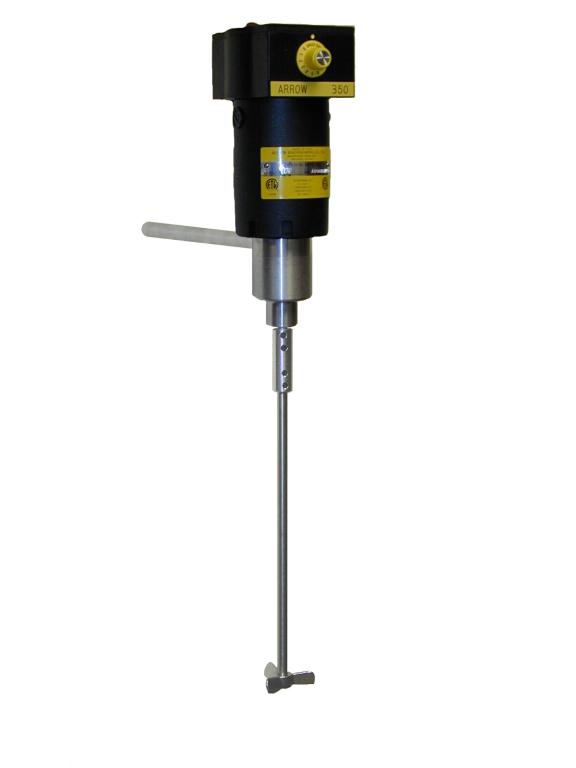

1/15 HP Gear Drive Electric Stirrer with 30" Shaft

1/15 HP Gear Drive Electric Stirrer with 30" Shaft Image

Model Number: ES350-30

Part Number: 22J2052

The ES350 electric stirrer operates with manual speed control from 0-350 RPM on an integral gear drive motor / controller unit. Rated for heavy duty, this 1/15 HP 115V, 60 Hz unit has a maximum torque load of 14.8 in-lbs. This model comes complete with a 30" shaft, 2-1/2" propeller and a 9/16" x 10" mounting rod and is ideal for agitating light liquids in batch sizes up to 50 liters. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.

Motor

Horsepower 1/15
Motor Type Electric
Phase Single
Voltage 115/230
Hertz 60/50
Drive Gear Reduced
Gearbox Ratio 7:1

Shaft

Exposed Dimensions 3/8" x 12"
Construction Stainless Steel

Model Number: ES350-30

The ES350 electric stirrer operates with manual speed control from 0-350 RPM on an integral gear drive motor / controller unit. Rated for heavy duty, this 1/15 HP 115V, 60 Hz unit has a maximum torque load of 14.8 in-lbs. This model comes complete with a 30" shaft, 2-1/2" propeller and a 9/16" x 10" mounting rod and is ideal for agitating light liquids in batch sizes up to 50 liters. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.

Motor

Horsepower 1/15
Motor Type Electric
Phase Single
Voltage 115/230
Hertz 60/50
Drive Gear Reduced
Gearbox Ratio 7:1

Shaft

Exposed Dimensions 3/8" x 12"
Construction Stainless Steel

$958.00
Approx. Lead Time
5 Business Days
* Orders in quantity or with other items may extend lead times.
