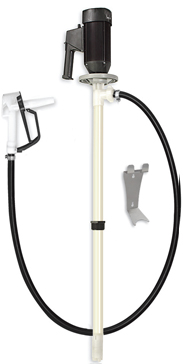

1 HP Electric PVDF and Carbon Drum Pump Package

1 HP Electric PVDF and Carbon Drum Pump Package Image

Model Number: DP9420

Part Number: 22G1030

This premium quality drum pump package features the pump, tube and accessory components to form a complete solution for a variety of applications. Engineered to safely transfer aggressive chemicals from drums, tote tanks, and large storage vessels the model DP9420 is designed for very concentrated and extremely aggressive liquids. Applications include sulfuric acid 66 Baumé, propionic acid, concentrated nitric (98%) and hydrofluoric acid. The 39" long immersed PVDF (Kynar®) feed tube is driven by a single phase 110-volt, 1-horsepower motor that delivers a maximum flow rate of 17.5 gallons per minute through the 1" diameter PVDF dispensing nozzle. Please note that the flow rating is for "water-like" viscosity and that liquids up to 1500 cps can be dispensed at lower flow rates. The seal-less design enables the pump to be operated dry . Package includes: pump tube, motor, hand nozzle, 6' flexible hose, polypropylene barrel adapter, wall storage bracket and hose clamps.

Motor

Horsepower 1
Motor Enclosure TEFC
Motor Type Electric
Phase Single
Voltage 110-120
Hertz 50-60
FL Amps 8.5

Model Number: DP9420

This premium quality drum pump package features the pump, tube and accessory components to form a complete solution for a variety of applications. Engineered to safely transfer aggressive chemicals from drums, tote tanks, and large storage vessels the model DP9420 is designed for very concentrated and extremely aggressive liquids. Applications include sulfuric acid 66 Baumé, propionic acid, concentrated nitric (98%) and hydrofluoric acid. The 39" long immersed PVDF (Kynar®) feed tube is driven by a single phase 110-volt, 1-horsepower motor that delivers a maximum flow rate of 17.5 gallons per minute through the 1" diameter PVDF dispensing nozzle. Please note that the flow rating is for "water-like" viscosity and that liquids up to 1500 cps can be dispensed at lower flow rates. The seal-less design enables the pump to be operated dry . Package includes: pump tube, motor, hand nozzle, 6' flexible hose, polypropylene barrel adapter, wall storage bracket and hose clamps.

Motor

Horsepower 1
Motor Enclosure TEFC
Motor Type Electric
Phase Single
Voltage 110-120
Hertz 50-60
FL Amps 8.5

$1,898.00
Approx. Lead Time
5 Business Days
* Orders in quantity or with other items may extend lead times.
