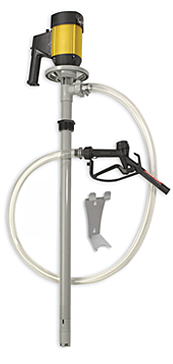

1 HP Electric Polypropylene and Carbon Drum Pump Package

1 HP Electric Polypropylene and Carbon Drum Pump Package Image

Model Number: DP9400

Part Number: 22G1026

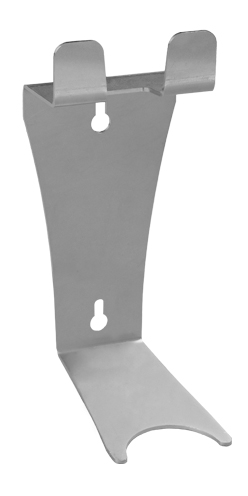

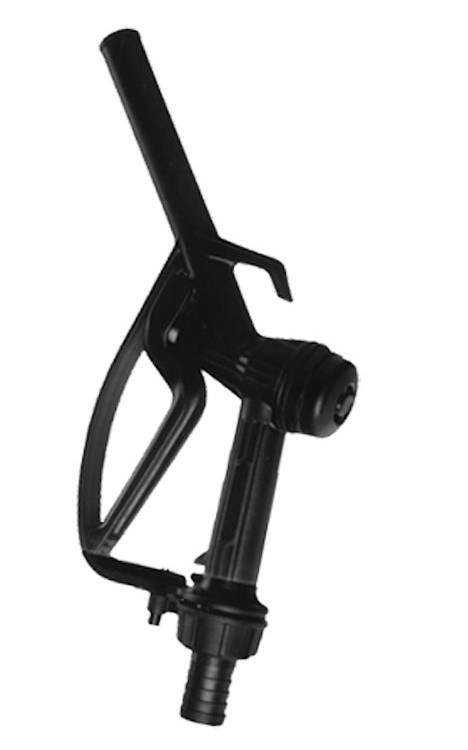

This premium quality drum pump package features the pump, tube and accessory components to form a complete solution for a variety of applications. Engineered to safely transfer aggressive chemicals from drums, tote tanks, and large storage vessels the model DP9400 is commonly used with hydrochloric acid, nitric acid (20%), acetic acid and sulfuric acid. The 39" long immersed polypropylene feed tube is driven by a single phase 110-volt, 1-horsepower motor that delivers a maximum flow of 15 gallons per minute through a 1" polypropylene dispensing nozzle. Please note that flow rating is for "water-like" viscosity and that liquids up to 1500 cps can be dispensed at lower flow rates. The seal-less design enables the pump to withstand being operated dry. Package includes: pump tube, motor, hand nozzle, 6' PVC flexible hose, polypropylene barrel adapter, wall storage bracket and hose clamps.

Motor

Horsepower 1
Motor Enclosure Open Drip Proof
Motor Type Electric
Phase Single
Voltage 110-120
Hertz 50-60
FL Amps 8.5

Model Number: DP9400

This premium quality drum pump package features the pump, tube and accessory components to form a complete solution for a variety of applications. Engineered to safely transfer aggressive chemicals from drums, tote tanks, and large storage vessels the model DP9400 is commonly used with hydrochloric acid, nitric acid (20%), acetic acid and sulfuric acid. The 39" long immersed polypropylene feed tube is driven by a single phase 110-volt, 1-horsepower motor that delivers a maximum flow of 15 gallons per minute through a 1" polypropylene dispensing nozzle. Please note that flow rating is for "water-like" viscosity and that liquids up to 1500 cps can be dispensed at lower flow rates. The seal-less design enables the pump to withstand being operated dry. Package includes: pump tube, motor, hand nozzle, 6' PVC flexible hose, polypropylene barrel adapter, wall storage bracket and hose clamps.

Motor

Horsepower 1
Motor Enclosure Open Drip Proof
Motor Type Electric
Phase Single
Voltage 110-120
Hertz 50-60
FL Amps 8.5

$1,255.00
Approx. Lead Time
5 Business Days
* Orders in quantity or with other items may extend lead times.
