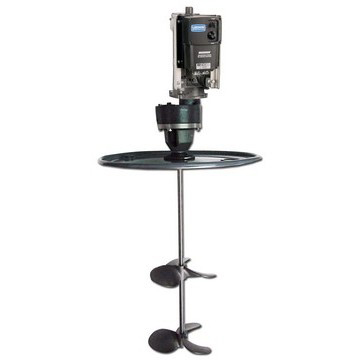

1/2 HP Electric Gear Drive Variable Speed Drum Lid Mixer
Model Number: DLG-5V
Part Number: 21A6148
INDCO's rugged DLG series drum lid mixer is excellent for use with heavy bodied coatings, epoxies, mud, plaster and slurries. This 1/2 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed non ventilated motor requires single phase 115/230 voltage. The 5:1 ratio gearbox and the variable speed control provide the torque and control for agitation from 0-350 RPM. The 30" shaft attaches to the motor coupler and two 10" impellers with set screws. This unit ships complete with a standard 55 gallon drum lid. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3330 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| Hertz | 60 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 2 |
| Diameter | 10" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Construction | Steel |
| Features | Drum Lid |
Shaft
| Exposed Dimensions | 3/4" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 92 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
