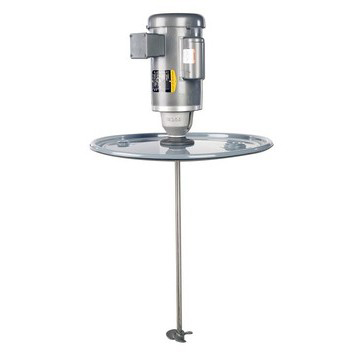

3/4 HP Electric Direct Drive Drum Lid Mixer
Model Number: DL7-T
Part Number: 21A6137
Powerful and portable, INDCO's DL series direct drive drum lid mixer is excellent for medium viscosity materials and includes a standard 55 gallon drum lid. This 3/4 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115/230 voltage. The 30" shaft attaches to the motor coupler and one 5" impeller with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
Horsepower | 3/4 |
Motor Enclosure | Totally Enclosed Fan Cooled |
MotorRPM | 1750 |
Motor Type | Electric |
Baldor Model or Equivalent | VL3507 |
Motor Frame | 56C Face |
Motor Exterior | Painted |
Rotation Top | Wired Clockwise |
Phase | Single |
Voltage | 115/230 |
Hertz | 60 |
FL Amps | 8.4:4.2 |
ServiceFactor | 1.00 |
InsulationClass | B |
Drive | Direct |
Impeller
Quantity | 1 |
Diameter | 5" |
Style | 3-Bade Square Pitch |
Bore | 5/8" |
Rotation | Left Hand |
Pitch | 1:1 |
Material Construction | 316L Stainless Steel |
Blade Construction | Cast |
Set Screw | 1 |
Mount
Construction | Steel |
Features | Drum Lid |
Shaft
Exposed Dimensions | 5/8" x 30" |
Construction | 316 Stainless Steel |
General
Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
Shipping Carrier | Small Parcel |
FOB | New Albany, IN |
Model Number: DL7-T
Powerful and portable, INDCO's DL series direct drive drum lid mixer is excellent for medium viscosity materials and includes a standard 55 gallon drum lid. This 3/4 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115/230 voltage. The 30" shaft attaches to the motor coupler and one 5" impeller with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
Horsepower | 3/4 |
Motor Enclosure | Totally Enclosed Fan Cooled |
MotorRPM | 1750 |
Motor Type | Electric |
Baldor Model or Equivalent | VL3507 |
Motor Frame | 56C Face |
Motor Exterior | Painted |
Rotation Top | Wired Clockwise |
Phase | Single |
Voltage | 115/230 |
Hertz | 60 |
FL Amps | 8.4:4.2 |
ServiceFactor | 1.00 |
InsulationClass | B |
Drive | Direct |
Impeller
Quantity | 1 |
Diameter | 5" |
Style | 3-Bade Square Pitch |
Bore | 5/8" |
Rotation | Left Hand |
Pitch | 1:1 |
Material Construction | 316L Stainless Steel |
Blade Construction | Cast |
Set Screw | 1 |
Mount
Construction | Steel |
Features | Drum Lid |
Shaft
Exposed Dimensions | 5/8" x 30" |
Construction | 316 Stainless Steel |
General
Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
Shipping Carrier | Small Parcel |
FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
