1/5 HP Heavy Duty Stirrer

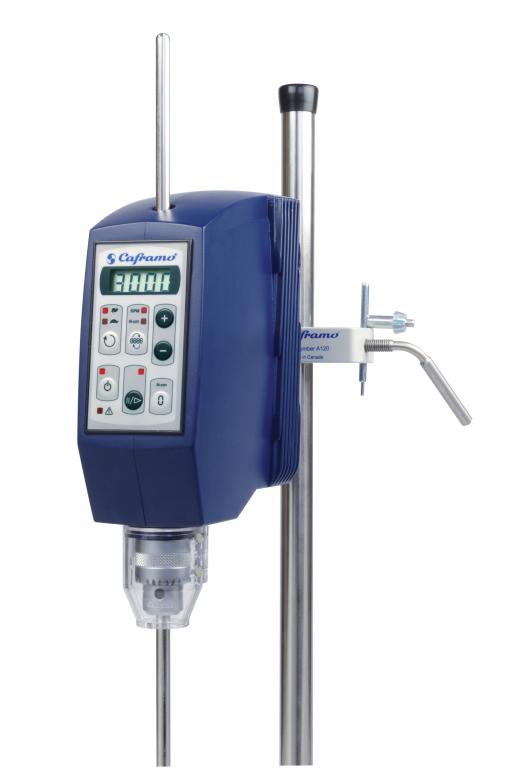

1/5 HP Heavy Duty Stirrer Image

Model Number: DC3030

Part Number: 22J2016

The DC3030 high-torque stirrer is designed specifically to meet the demands of heavy industrial use and is rated for batches up to 15.8 gal (60 liters).  This powerful stirrer can be used with viscosities up to 50000 cps. The electric 1/5 HP brushless direct-current motor offers a unique two-speed transmission providing incredible power.  Maximum torque of 30.0 in-lbs. is generated between 30-600 RPM and 6.0 in-lbs. is provided at speeds from 600-3000 RPM and includes automatic overload protection.  This stirrer is quiet, dependable, maintenance-free and ideal for continuous use. The stirrer includes the motor, 3/8" capacity chuck, chuck guard, chuck key, 1/2" x 5" support rod, power cord, and calibration certificate. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.

Motor

Horsepower 1/5
Motor Type Electric

Mount

Features 1/2" X 5" support rod

Model Number: DC3030

The DC3030 high-torque stirrer is designed specifically to meet the demands of heavy industrial use and is rated for batches up to 15.8 gal (60 liters).  This powerful stirrer can be used with viscosities up to 50000 cps. The electric 1/5 HP brushless direct-current motor offers a unique two-speed transmission providing incredible power.  Maximum torque of 30.0 in-lbs. is generated between 30-600 RPM and 6.0 in-lbs. is provided at speeds from 600-3000 RPM and includes automatic overload protection.  This stirrer is quiet, dependable, maintenance-free and ideal for continuous use. The stirrer includes the motor, 3/8" capacity chuck, chuck guard, chuck key, 1/2" x 5" support rod, power cord, and calibration certificate. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.

Motor

Horsepower 1/5
Motor Type Electric

Mount

Features 1/2" X 5" support rod

$1,499.00
Approx. Lead Time
1 Business Days *
* If ordered before noon EST will ship same day. Orders in quantity or with other items may extend lead times.
Add To Cart
