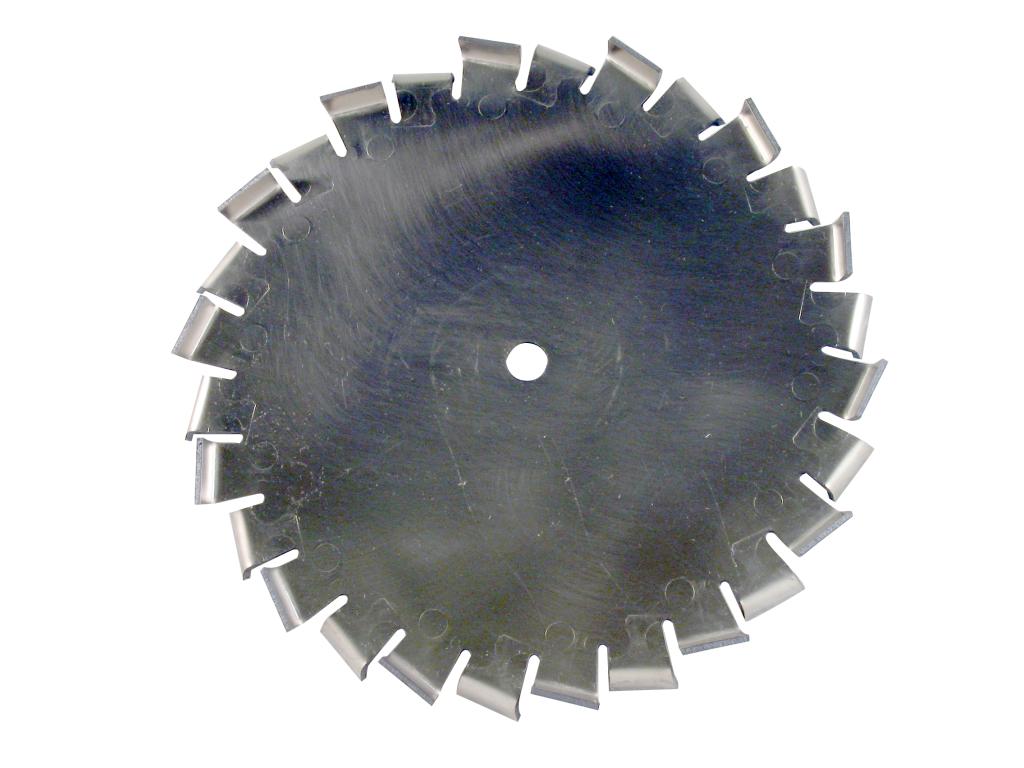

10" Dia. X 5/8" Center Hole Type B 304 SS Dispersion Blade - Coated

10" Dia. X 5/8" Center Hole Type B 304 SS Dispersion Blade - Coated Image
10" Dia. X 5/8" Center Hole Type B 304 SS Dispersion Blade - Coated - image 1
10" Dia. X 5/8" Center Hole Type B 304 SS Dispersion Blade - Coated - image 2

Model Number: DB10BT

Part Number: 21C1003

The INDCO tungsten carbide coated Design B dispersion blade is the performance match to the Hockmeyer "F" design. With an aggressive square tooth profile and slots between teeth providing alternate spacing the B blade is another popular option for a wide range of dispersion applications. Tungsten carbide coating provides an extremely hard surface for extended blade life or added durability when used with highly abrasive materials. The 10" diameter blade is laser cut from 304 stainless steel, has a 5/8" center hole and is die formed. We can provide 316 stainless steel blades by request. All our dispersion blades can be supplied with mounting hole patterns to match your equipment requirements. Optional mounting hubs are also available and include welded or bolted designs. Please see our guide to ordering dispersion blades or contact customer service.

Impeller

General

Model Number: DB10BT

The INDCO tungsten carbide coated Design B dispersion blade is the performance match to the Hockmeyer "F" design. With an aggressive square tooth profile and slots between teeth providing alternate spacing the B blade is another popular option for a wide range of dispersion applications. Tungsten carbide coating provides an extremely hard surface for extended blade life or added durability when used with highly abrasive materials. The 10" diameter blade is laser cut from 304 stainless steel, has a 5/8" center hole and is die formed. We can provide 316 stainless steel blades by request. All our dispersion blades can be supplied with mounting hole patterns to match your equipment requirements. Optional mounting hubs are also available and include welded or bolted designs. Please see our guide to ordering dispersion blades or contact customer service.

Impeller

General


$484.00
Approx. Lead Time
4 Business Days
* Orders in quantity or with other items may extend lead times.
