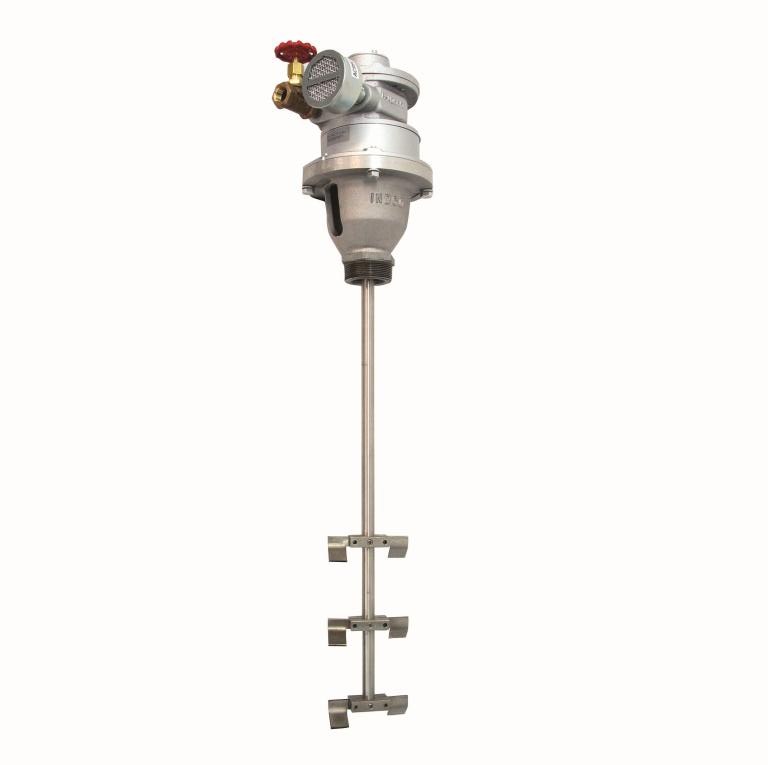

4 HP Air Direct Drive Drum Bung Hole Mount Mixer
Model Number: BU4-A
Part Number: 21A5100
INDCO's BU series mixers are designed for use on a closed steel drum of low to medium viscosity materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. The 4 HP air motor is our largest in this product line and provides maximum agitation when supplied with 100 PSI @ 130 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 300-3000 RPM. The collapsible impellers fit through the 2" opening and expand to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and three 4"impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment. DRUM LID NOT INCLUDED.
Motor
Horsepower | 4 |
MotorRPM | 300-3000 |
Motor Type | Air |
Gast Model | 6AM-NRV-11A |
Motor Frame | 56C Face |
Motor Exterior | Painted |
Rotation Top | Reversible |
Air Requirements | 100 PSI @ 130 CFM |
Air Inlet Size | 1/2" |
Drive | Direct |
Impeller
Quantity | 3 |
Diameter | 4" |
Style | Folding |
Bore | 5/8" |
Rotation | Left Hand |
Material Construction | 304 Stainless Steel |
Blade Construction | Laser Cut |
Set Screw | 2 |
Mount
Adjustable | 2" NPT |
Construction | Aluminum |
Features | Side Slot to reach motor coupler set screws |
Shaft
Exposed Dimensions | 5/8" x 30" |
Construction | 316 Construction |
General
Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
Weight | 29 |
Shipping Carrier | Small Parcel |
FOB | New Albany, IN |
Model Number: BU4-A
INDCO's BU series mixers are designed for use on a closed steel drum of low to medium viscosity materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. The 4 HP air motor is our largest in this product line and provides maximum agitation when supplied with 100 PSI @ 130 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 300-3000 RPM. The collapsible impellers fit through the 2" opening and expand to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and three 4"impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment. DRUM LID NOT INCLUDED.
Motor
Horsepower | 4 |
MotorRPM | 300-3000 |
Motor Type | Air |
Gast Model | 6AM-NRV-11A |
Motor Frame | 56C Face |
Motor Exterior | Painted |
Rotation Top | Reversible |
Air Requirements | 100 PSI @ 130 CFM |
Air Inlet Size | 1/2" |
Drive | Direct |
Impeller
Quantity | 3 |
Diameter | 4" |
Style | Folding |
Bore | 5/8" |
Rotation | Left Hand |
Material Construction | 304 Stainless Steel |
Blade Construction | Laser Cut |
Set Screw | 2 |
Mount
Adjustable | 2" NPT |
Construction | Aluminum |
Features | Side Slot to reach motor coupler set screws |
Shaft
Exposed Dimensions | 5/8" x 30" |
Construction | 316 Construction |
General
Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
Weight | 29 |
Shipping Carrier | Small Parcel |
FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
