1 HP Variable Speed Electric Gear Drive Bracket Mount Drum Mixer
Model Number: BM-1V
Part Number: 21A5014

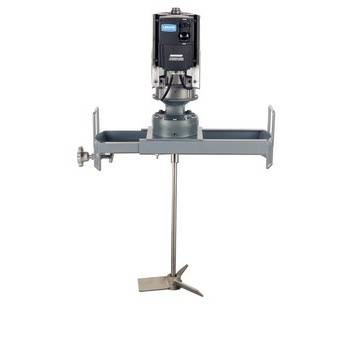

INDCO's rugged heavy duty BM series mixer is gear reduced and provides the torque necessary for mixing medium to heavy viscosity materials. This 1 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115/230 voltage. The variable speed control provides 0-350 RPM. The sturdy steel bracket is adjustable to fit containers 18" to 31". The 30" long shaft attaches to the motor coupler and one 10" axial impeller with set screws. All wetted parts are 316 stainless steel construction. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3445 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 0-350 |
Impeller
| Quantity | 1 |
| Diameter | 10" |
| Style | 3-Blade Axial Flow Turbine |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 45 Degree |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Mount
| Adjustable | 18" up to 31" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 132 |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: BM-1V
INDCO's rugged heavy duty BM series mixer is gear reduced and provides the torque necessary for mixing medium to heavy viscosity materials. This 1 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115/230 voltage. The variable speed control provides 0-350 RPM. The sturdy steel bracket is adjustable to fit containers 18" to 31". The 30" long shaft attaches to the motor coupler and one 10" axial impeller with set screws. All wetted parts are 316 stainless steel construction. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3445 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 0-350 |
Impeller
| Quantity | 1 |
| Diameter | 10" |
| Style | 3-Blade Axial Flow Turbine |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 45 Degree |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Mount
| Adjustable | 18" up to 31" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 132 |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
