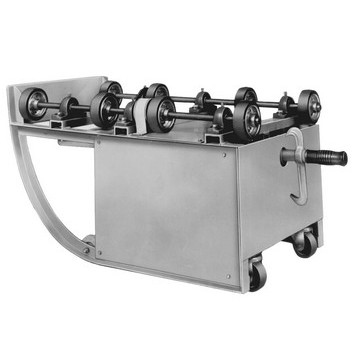

Fixed Speed Portable Drum Roller

Model Number: 201

Roll a closed steel drum to mix wet or dry materials with this industrial drum roller. The 201 rotates 15-55 gallons with up to 6"-28" diameter by up to 40" tall at a fixed speed. This unit is 1/2 HP totally-enclosed fan cooled electric, 115 volt unit operates at 20 RPM (based on a 22.5"dia 55 gallon drum) and is equipped with the cord and plug. Use the kickstand to prop the drum roller on end to place your drum onto the base plate. The built-in retractable tipping lever assists in loading a heavy drum onto the drum mixer however it will only engage if the drum is a minimum of 30" tall. This roller has a 500 lbs. liquid load and a 300 lbs. dry load capacity. An optional attachment is available to roll 1-5 gallon containers and is sold separately.

Documents

• 201(VS)DrumRollerManual
