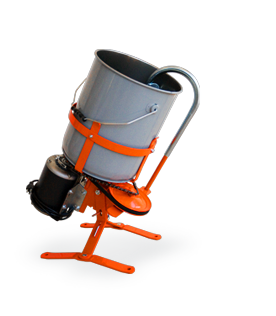

1/2 HP ODP Electric Kit Pail Mixer

1/2 HP ODP Electric Kit Pail Mixer Image

Model Number: M-60C

Part Number: 21N5006

The M60 Pail Mixer rotates a securely held pail against a stationary mixer paddle.   This design provides radial and axial flow by scraping the sides and bottom for complete mixing.  The base is adjustable with four mixing angle options and a selection pin.  The unit requires assembly and is equipped with a 5-gallon pail that is removable and easy to clean.  The 1/2 HP electric motor model is an open drip proof motor and requires single phase 115 voltage. This unit is complete with an on-off switch, cord and plug for a standard outlet and operates at 60 RPM. This electric model features an ABB or an equivalent brand motor.

Motor

Horsepower 1/2
Motor Enclosure Open Drip Proof
MotorRPM 1750
Motor Type Electric
Baldor Model or Equivalent L1304
Motor Frame 56F
Motor Exterior Painted
Rotation Top Wired Clockwise
Phase Single
Voltage 115/230
Hertz 60
FL Amps 7.4:3.7
ServiceFactor 1.00
InsulationClass B
Drive Direct

Impeller

Quantity 1
Style Scraper
Material Construction Zinc Plated Carbon Steel
Blade Construction Welded

Shaft

Construction Zinc Plated Carbon Steel

Model Number: M-60C

The M60 Pail Mixer rotates a securely held pail against a stationary mixer paddle.   This design provides radial and axial flow by scraping the sides and bottom for complete mixing.  The base is adjustable with four mixing angle options and a selection pin.  The unit requires assembly and is equipped with a 5-gallon pail that is removable and easy to clean.  The 1/2 HP electric motor model is an open drip proof motor and requires single phase 115 voltage. This unit is complete with an on-off switch, cord and plug for a standard outlet and operates at 60 RPM. This electric model features an ABB or an equivalent brand motor.

Motor

Horsepower 1/2
Motor Enclosure Open Drip Proof
MotorRPM 1750
Motor Type Electric
Baldor Model or Equivalent L1304
Motor Frame 56F
Motor Exterior Painted
Rotation Top Wired Clockwise
Phase Single
Voltage 115/230
Hertz 60
FL Amps 7.4:3.7
ServiceFactor 1.00
InsulationClass B
Drive Direct

Impeller

Quantity 1
Style Scraper
Material Construction Zinc Plated Carbon Steel
Blade Construction Welded

Shaft

Construction Zinc Plated Carbon Steel

$715.00
Approx. Lead Time
7 Business Days
* Orders in quantity or with other items may extend lead times.
