1 HP Electric Gear Drive Plate Mount Mixer
Model Number: TMD-19
Part Number: 21Q2542

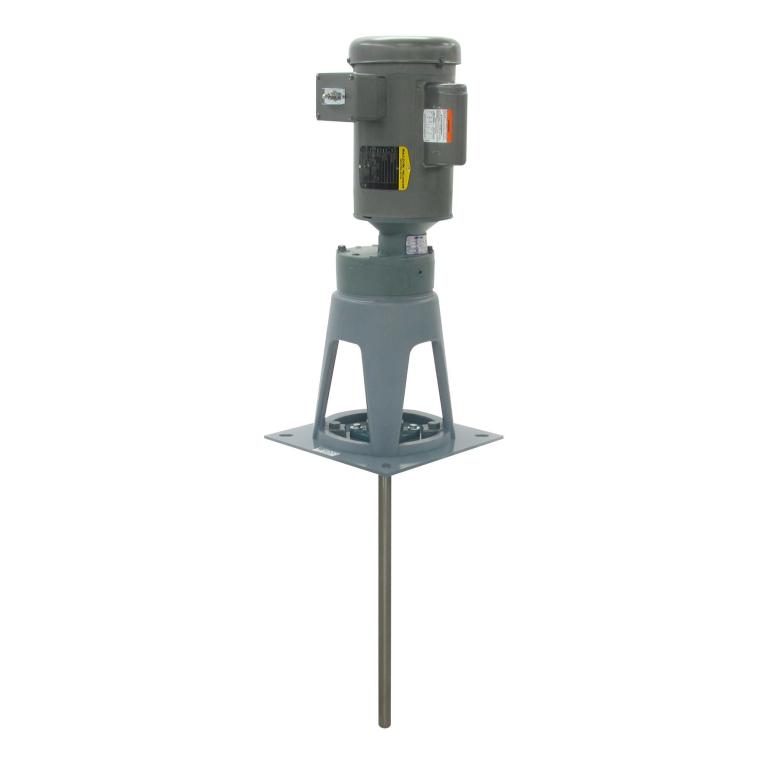

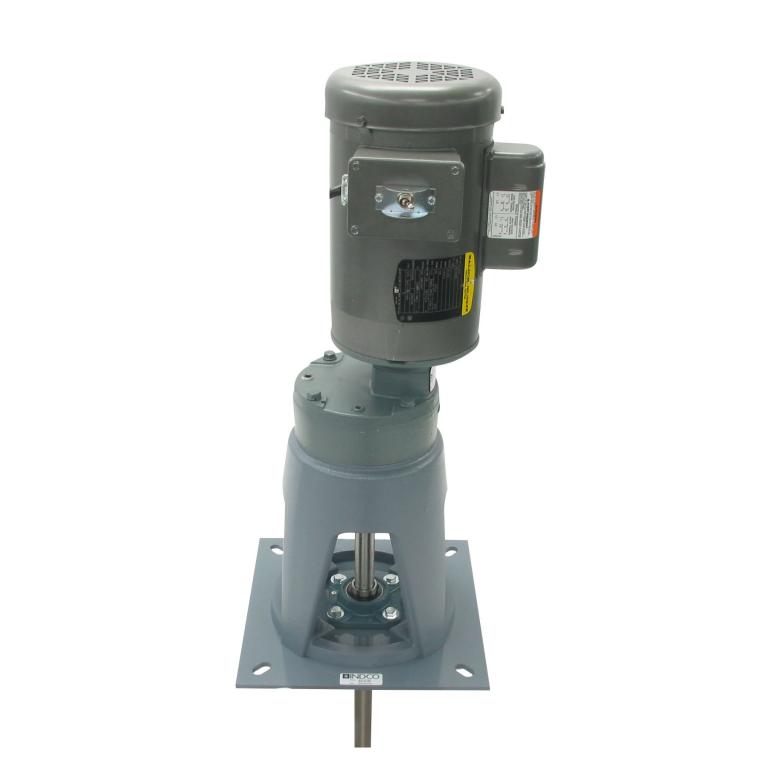

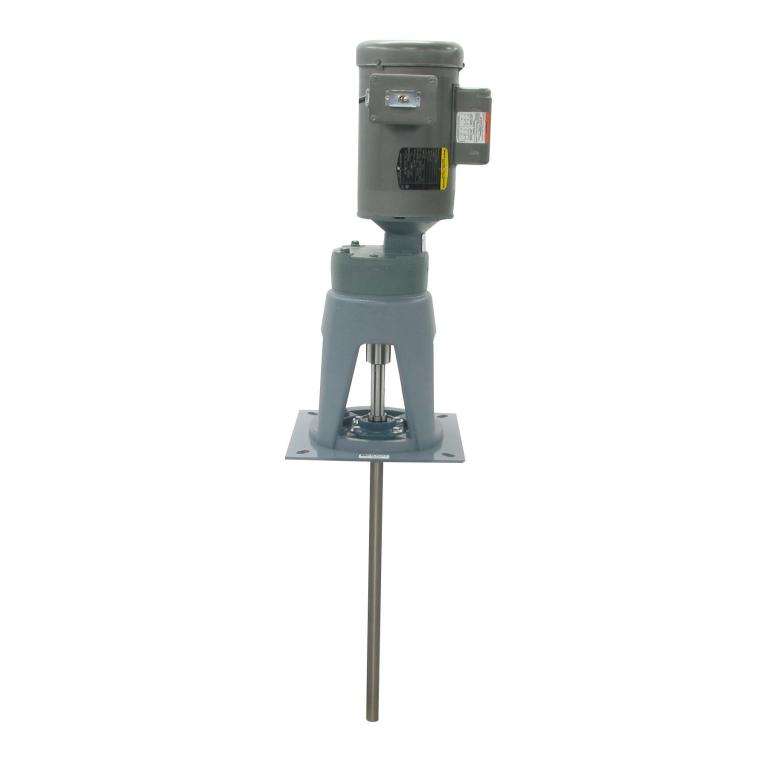

INDCO's Top Entry Plate Mount Mixer is designed to mount on a beam or channel over an open or closed tank operated under atmospheric conditions. These heavy duty models can mix various applications in batches up to 2000 gallons. A carrier bearing mounted at the mounting plate offers maximum shaft support and reduced motor and gearbox wear.
This 1 HP electric model with its 5:1 ratio gearbox operates at 350 RPM and is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115/230 voltage. The 60" shaft attaches to the motor coupler and two 11" 3-blade square pitch impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3510 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 12.8:6.4 |
| ServiceFactor | 1.00 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 2 |
| Diameter | 11" |

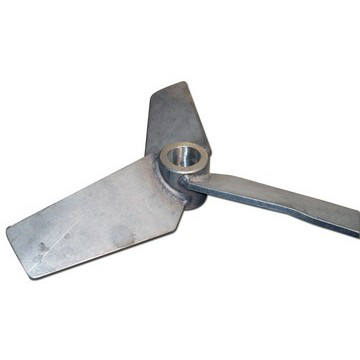

| Style | 3-Blade Square Pitch |
| Bore | 1-1/4" |
| Rotation | left hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Adjustable | Riser Angle Available by Quote |
| Construction | Steel |
| Features | 12" x 12" Baseplate |
Shaft
| Exposed Dimensions | 1-1/4" x 60" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: TMD-19
INDCO's Top Entry Plate Mount Mixer is designed to mount on a beam or channel over an open or closed tank operated under atmospheric conditions. These heavy duty models can mix various applications in batches up to 2000 gallons. A carrier bearing mounted at the mounting plate offers maximum shaft support and reduced motor and gearbox wear.
This 1 HP electric model with its 5:1 ratio gearbox operates at 350 RPM and is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115/230 voltage. The 60" shaft attaches to the motor coupler and two 11" 3-blade square pitch impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3510 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 12.8:6.4 |
| ServiceFactor | 1.00 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 2 |
| Diameter | 11" |
| Style | 3-Blade Square Pitch |
| Bore | 1-1/4" |
| Rotation | left hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Adjustable | Riser Angle Available by Quote |
| Construction | Steel |
| Features | 12" x 12" Baseplate |
Shaft
| Exposed Dimensions | 1-1/4" x 60" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
5 Business Days * Orders in quantity or with other items may extend lead times.
