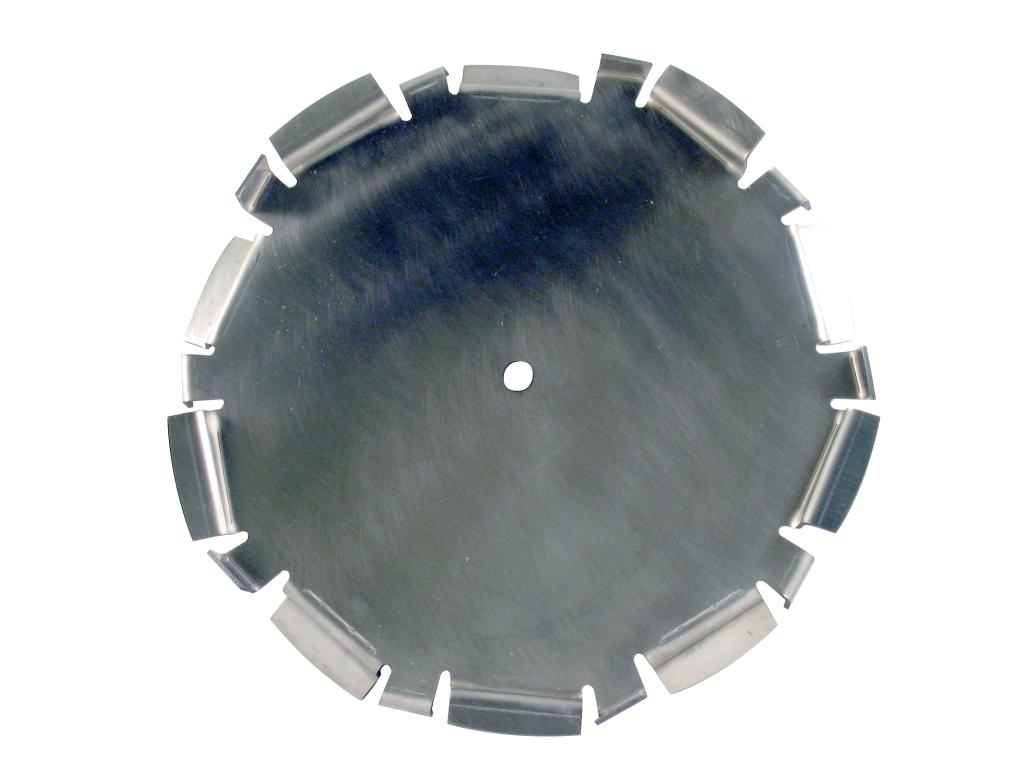

14" Dia. X 5/8" Center Hole Type D 304 SS Dispersion Blade
Model Number: DB14D
Part Number: 21C4070
Our Design D blade is a great option when a dispersion blade with pumping action is desired. The combination of teeth with secondary angled bends for increased flow and teeth with high-shear edge profiles result in a blade commonly used for high solids loading or for higher viscosity products. The 14" diameter blade is laser cut from 304 stainless steel, has a 5/8" center hole and is die formed. We can provide 316 stainless steel blades by request. For increased blade life or for highly abrasive applications please see our tungsten carbide coated models. All our dispersion blades can be supplied with mounting hole patterns to match your equipment requirements. Optional mounting hubs are also available and include welded or bolted designs. Please see our guide to ordering dispersion blades or contact customer service.
Impeller
| Diameter | 14" |
| Style | Dispersion Blade |
| Center Hole | 5/8" |
| Design | D |
| Material Construction | 304 Stainless Steel |
| Surface Finish | 2B |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: DB14D
Our Design D blade is a great option when a dispersion blade with pumping action is desired. The combination of teeth with secondary angled bends for increased flow and teeth with high-shear edge profiles result in a blade commonly used for high solids loading or for higher viscosity products. The 14" diameter blade is laser cut from 304 stainless steel, has a 5/8" center hole and is die formed. We can provide 316 stainless steel blades by request. For increased blade life or for highly abrasive applications please see our tungsten carbide coated models. All our dispersion blades can be supplied with mounting hole patterns to match your equipment requirements. Optional mounting hubs are also available and include welded or bolted designs. Please see our guide to ordering dispersion blades or contact customer service.
Impeller
| Diameter | 14" |
| Style | Dispersion Blade |
| Center Hole | 5/8" |
| Design | D |
| Material Construction | 304 Stainless Steel |
| Surface Finish | 2B |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
3 Business Days * Orders in quantity or with other items may extend lead times.
