10" Dia. X 5/8" Center Hole Type C 304 SS Dispersion Blade - Coated
Model Number: DB10CT
Part Number: 21C1005

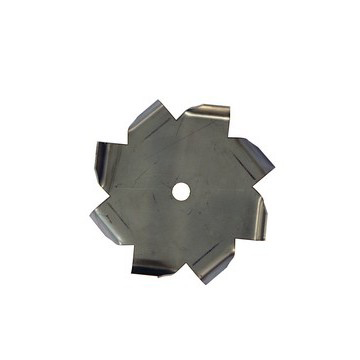

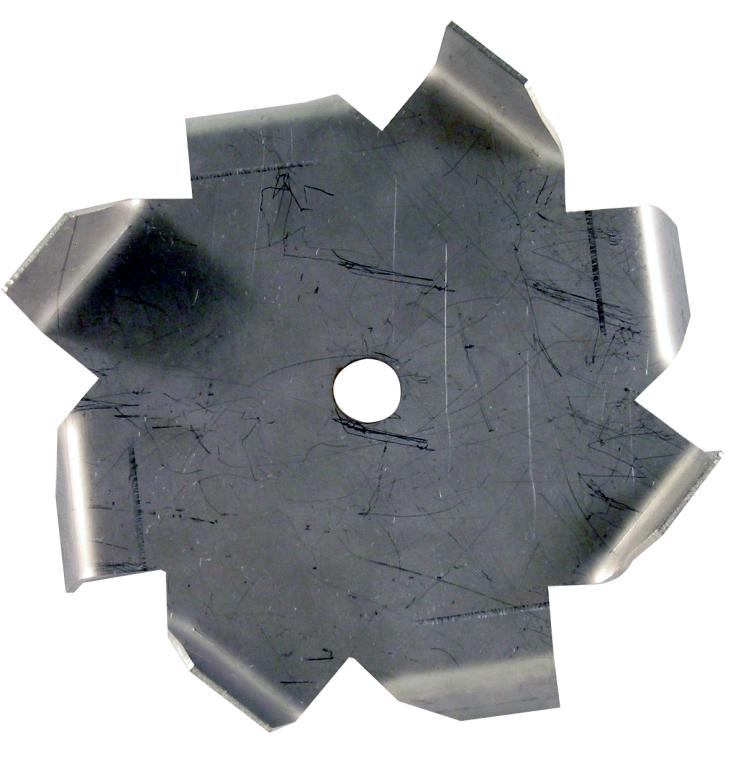

The INDCO tungsten carbide coated Design C dispersion blade features larger teeth with a higher profile than the A or B designs. It provides the shear required for dispersion with increased pumping action for heavier materials. Tungsten carbide coating provides an extremely hard surface for extended blade life or added durability when used with highly abrasive materials. The 10" diameter blade is laser cut from 304 stainless steel, has a 5/8" center hole and is die formed. We can provide 316 stainless steel blades by request. For increased blade life or for highly abrasive applications please see our tungsten carbide coated models. All our dispersion blades can be supplied with mounting hole patterns to match your equipment requirements. Optional mounting hubs are also available and include welded or bolted designs. Please see our guide to ordering dispersion blades or contact customer service.
Impeller
Diameter | 10" |
Style | Dispersion Blade |
Center Hole | 5/8" |
Design | C |
Material Construction | 304 Stainless Steel |
Surface Finish | Tungsten Carbide Coated |
General
Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
Shipping Carrier | Small Parcel |
FOB | NY |
Model Number: DB10CT
The INDCO tungsten carbide coated Design C dispersion blade features larger teeth with a higher profile than the A or B designs. It provides the shear required for dispersion with increased pumping action for heavier materials. Tungsten carbide coating provides an extremely hard surface for extended blade life or added durability when used with highly abrasive materials. The 10" diameter blade is laser cut from 304 stainless steel, has a 5/8" center hole and is die formed. We can provide 316 stainless steel blades by request. For increased blade life or for highly abrasive applications please see our tungsten carbide coated models. All our dispersion blades can be supplied with mounting hole patterns to match your equipment requirements. Optional mounting hubs are also available and include welded or bolted designs. Please see our guide to ordering dispersion blades or contact customer service.
Impeller
Diameter | 10" |
Style | Dispersion Blade |
Center Hole | 5/8" |
Design | C |
Material Construction | 304 Stainless Steel |
Surface Finish | Tungsten Carbide Coated |
General
Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
Shipping Carrier | Small Parcel |
FOB | NY |
4 Business Days * Orders in quantity or with other items may extend lead times.
